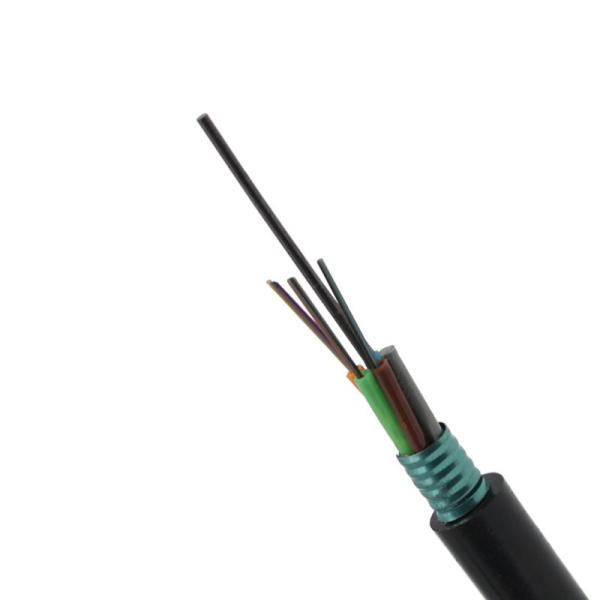

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Name: PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial
Brand: JQ/OEM
Price: 1 USD

China PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial wholesale

Brand Name : JQ/OEM

Model Number : GYTS-24B1.3

Certification : ISO9001

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Fiber type : YOFC,Fiberhome,as request

Color : Black

Jacket : PE,MDPE

Strength member : Steel wire

Fiber count : 2-288 cores

Installation : Aerial & Duct

Armored : Steel tape

Product name : Outdoor Optic Fiber Cable

Application : Network

Contact Now

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Product Description

Fiber Count	1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name	JQ/OEM
Length	1km 2km 3km 4km 5km
Armored	Steel tape

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F.

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Features

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Good crush resistance and flexibility

5. PE or LSZH outer sheath protects cable form ultraviolet ( UV ) radiation

6. The following measures are taken to ensure the cable watertight

7. Single steel wire used as the central strength member

8. PSP used for moisture proof and anti-rodent function

9. Loose tube filling compound

10. 100% cable core filling

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Application

Suitable for external application in duct and aerial

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Packing details

LCL Delivery	<10000m	<20000m	<50000m	>100000m
	3 Days	5 Days	8Days	Negotiable

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Product Tags:

Aerial Fiber Optic Cable

24Cores Fiber Optic Cable

Outdoor Fiber Optic Cable

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial Images
