GYFXTBY FRP cable 2 4 6 8 12 core flat type outdoor Fiber Optical cable
Description
GYFXTBY cable is an outdoor fiber optic cable suitable for duct and aerial installation. It is designed with a central loose tube
construction and is suitable for backbone and FTTx outdoor applications. The cable features a high-strength member to ensure excellent mechanical and environmental performance. It is also designed with a water-blocking tape that provides moisture resistance, making it suitable for outdoor use in a variety of weather conditions. GYFXTBY cables come with different fiber counts to suit various network requirements. With its reliable performance and durable design,
Application
It is widely used in telecommunications, data communications, and other outdoor networking applications.

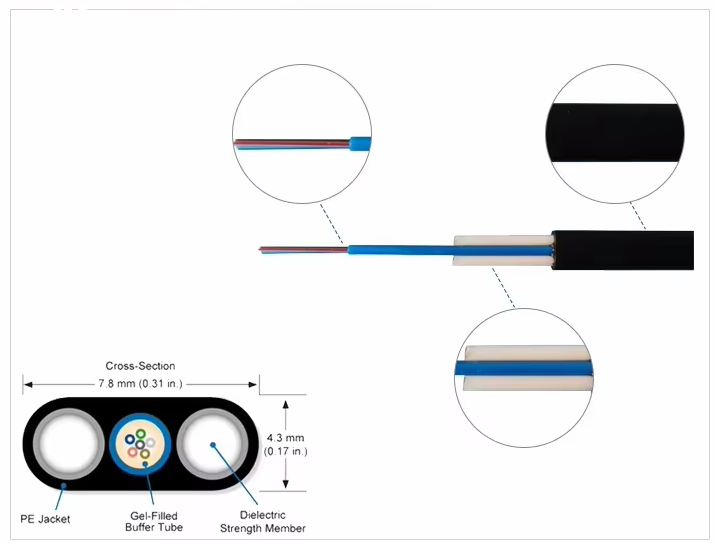

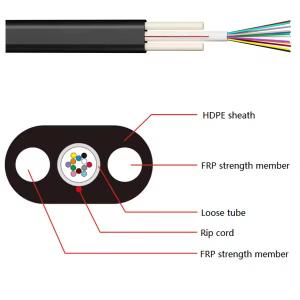

Cable structure
1.Optical Fiber
2.Loose Tube
3.Tube Filling
4. Strength Member
5.Outer Jacke
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | um | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | um | ≤0.5 |
| 5 | Coating Diameter | um | 245±5 |
| | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | 入cc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turnx10mm radius@1550nm | dB | ≤0.75 |
| 1turnx10mm radius@1625nm | dB | ≤1.5 |
Technical parameters
| Cable Type | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength long/short term (N) | Crush Resistance long/short term (N) | Bending Radius Static/Dynamic (mm) |
| GYFXTBY | 2-12 | 8.1*4.6 | 45 | 600/1500 | 300/1000 | 10D/20D |
| GYFXTBY | 2-12 | 9.6*5.6 | 50 | 600/1500 | 300/1000 | 10D/20D |

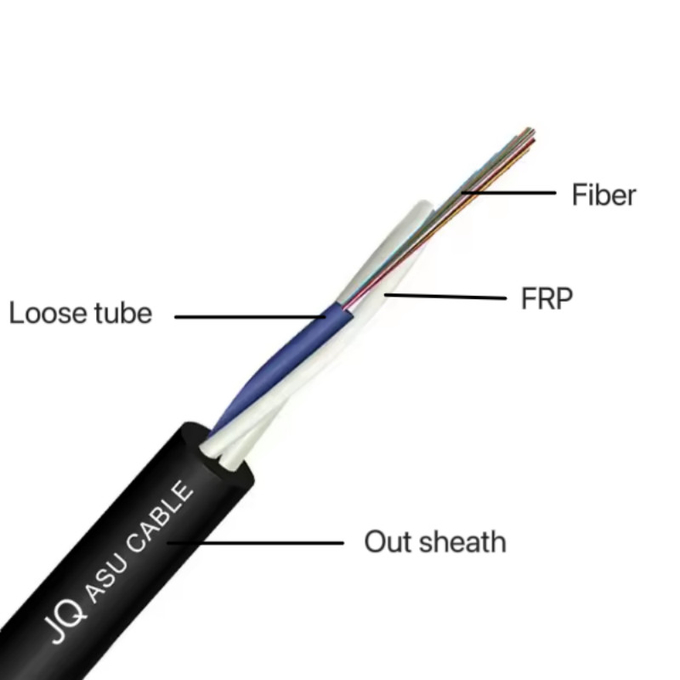

Related product ---ASU CABLE
Package

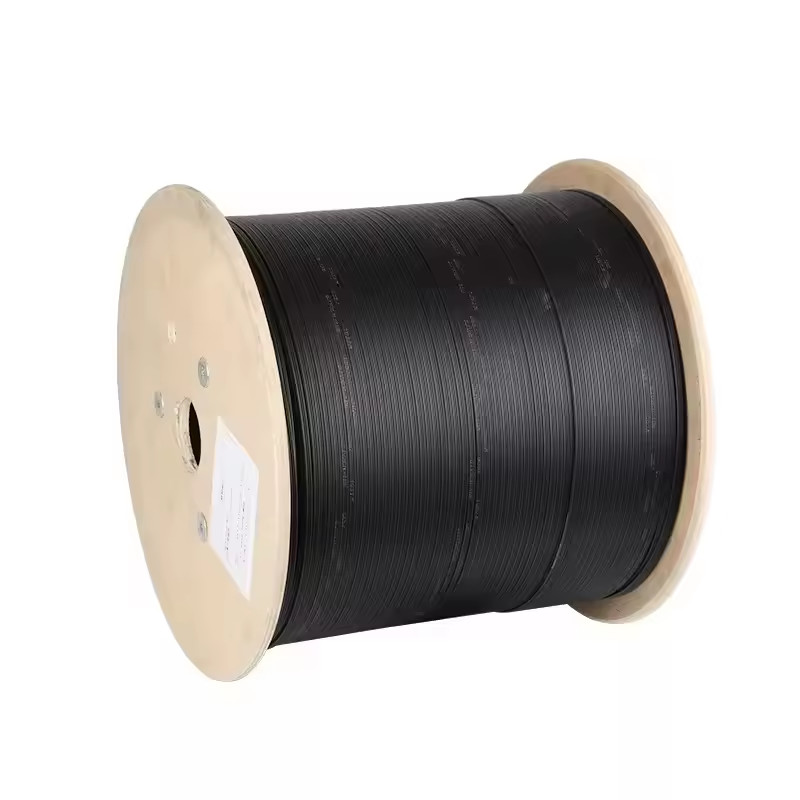

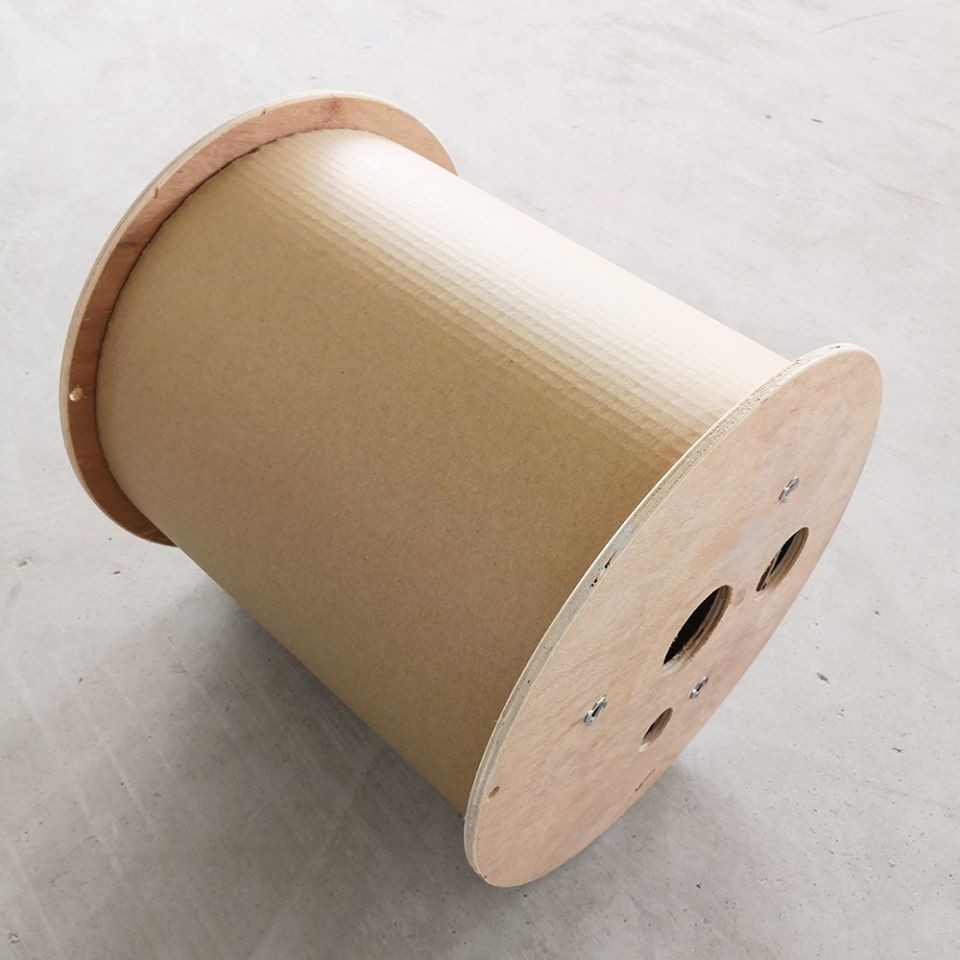

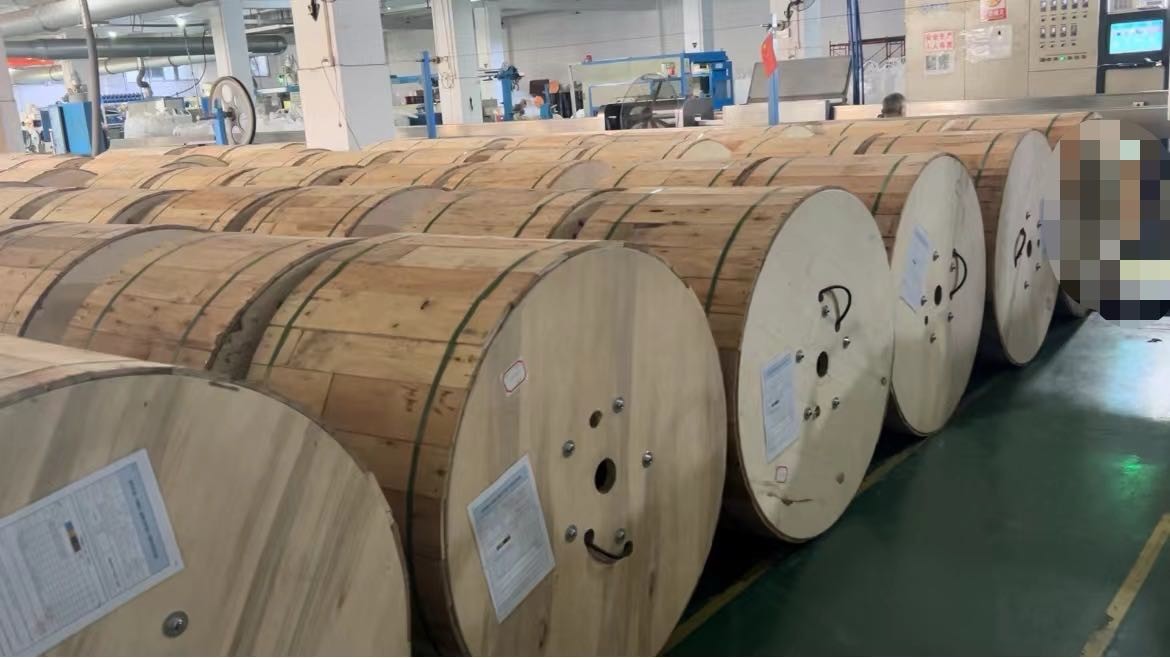

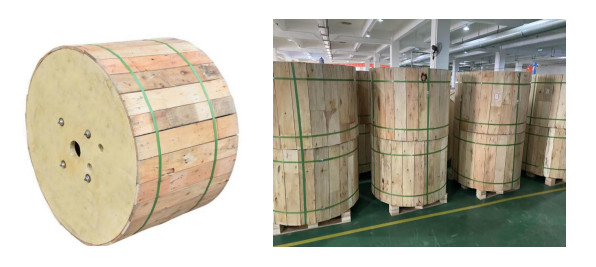

Nominal shipping length of the cable will be 2 km. Other length is also available if required by buyer.
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
