24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Name: 24 Hilos 48 Fo 72 96 144 Core Single Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri
Brand: JQ/OEM
Price: 1 USD

China 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri wholesale

Brand Name : JQ/OEM

Model Number : ADSS

Certification : ISO9001/CE/RoHS

Place of Origin : Guangdong, China

MOQ : 1 Kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 2-5days

Packaging Details : Wooden Drum

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber type : G652D Single mode or as your request

Length : As required

Color : Customized

Tube : Multi Loose Tube

Outer Sheath : PE or as your request

Central strength member : FRP

Package : Wooden Drum/Customized

Application : Self-supporting aerial

Span : 100-500M

Oem : Available

Temperature range : -40°~60°C

Standards : YD/T 769-2003 as well as IEC 60794-1

Contact Now

ADSS FIBER OPTIC CABLE

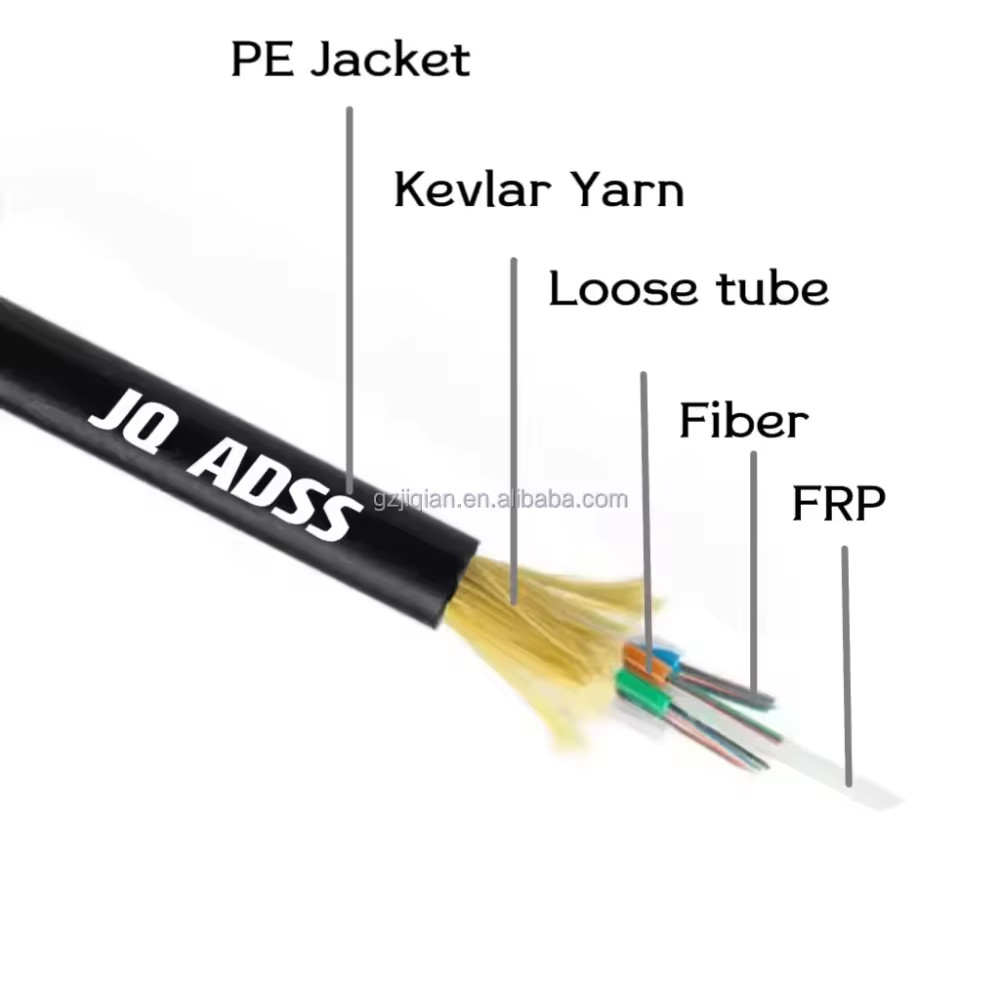

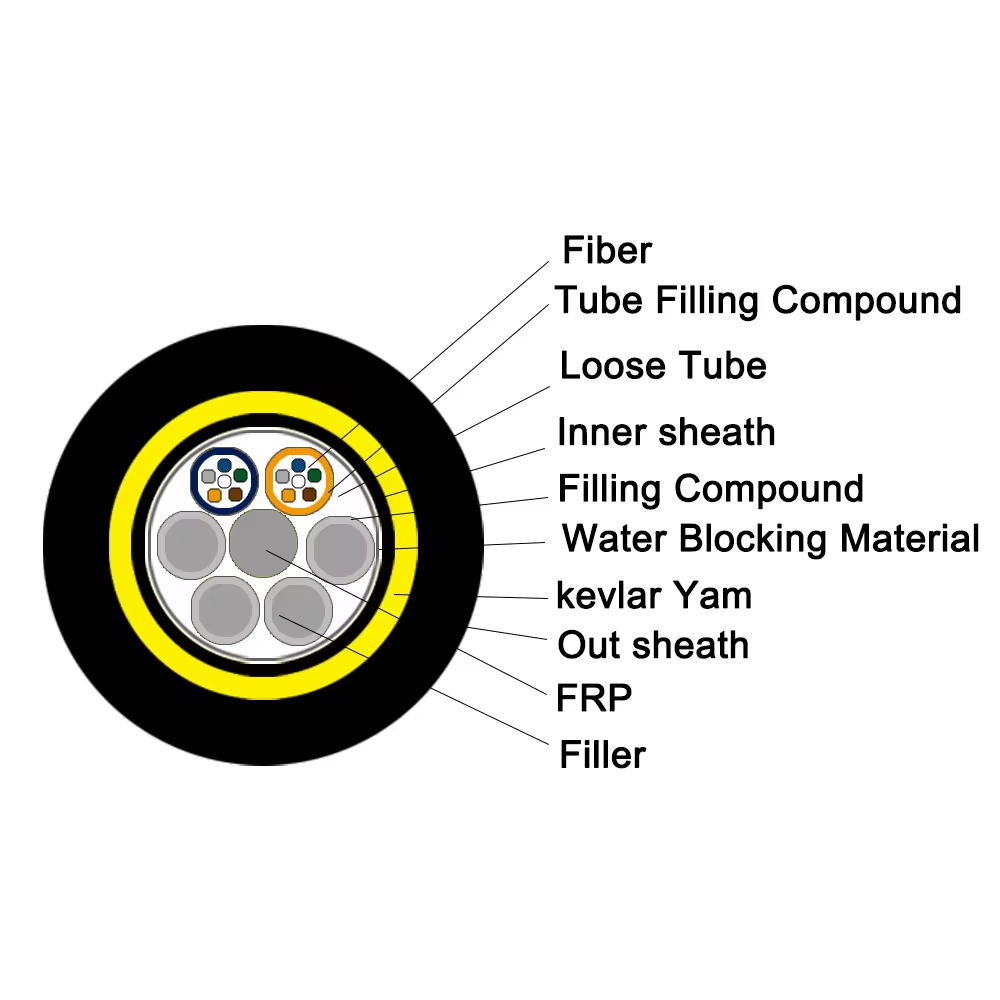

ADSS cable is loose tube stranded. The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

1. Can be installed without shutting off the power;

2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;

3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;

4. Large span lengths and the largest span is over 1000m;

5. Good performance of tensile strength and temperature;

6.The design life span is 30 years.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Specification:

item	value
Model Number	ADSS
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Cable Structure	Multi-Loose Tube None Armor
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber material	silicon dioxide
Fiber Type	G652D Single mode or as your request
Fiber color	Blue, Orange, Green, Brown,etc
Central strength member	FRP
Loose tube	Jelly filled
Loose tube Material	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Installation	Self-supporting aerial
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001 /ANATEL

Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

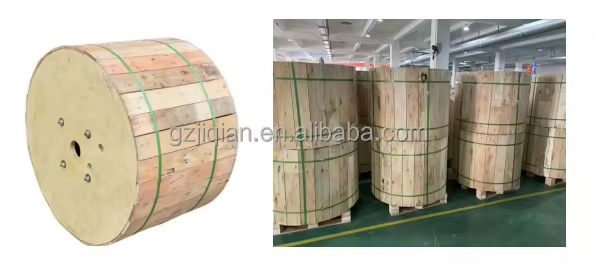

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed; 24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Free printing

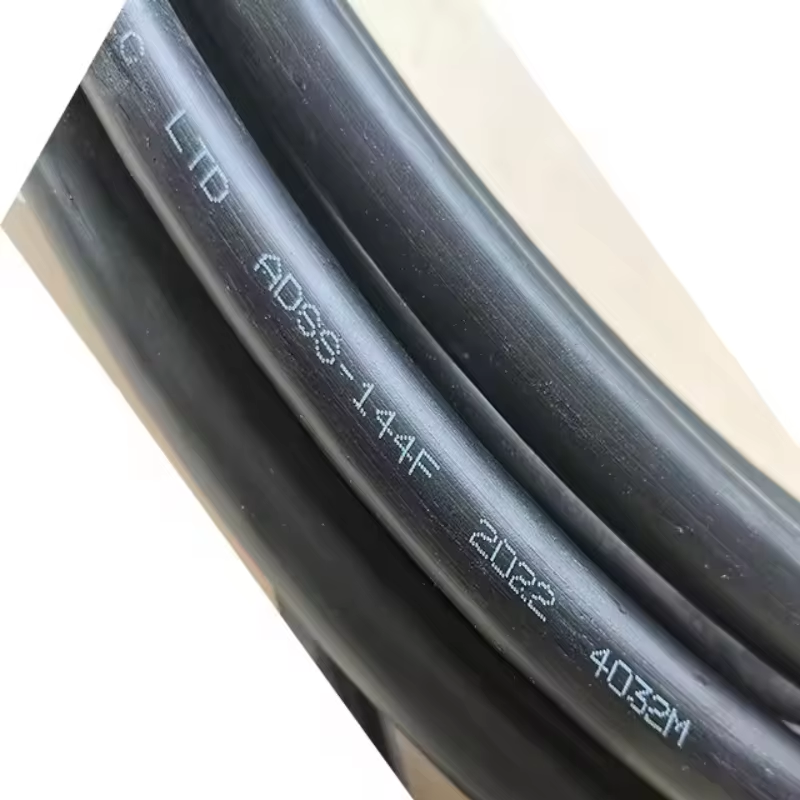

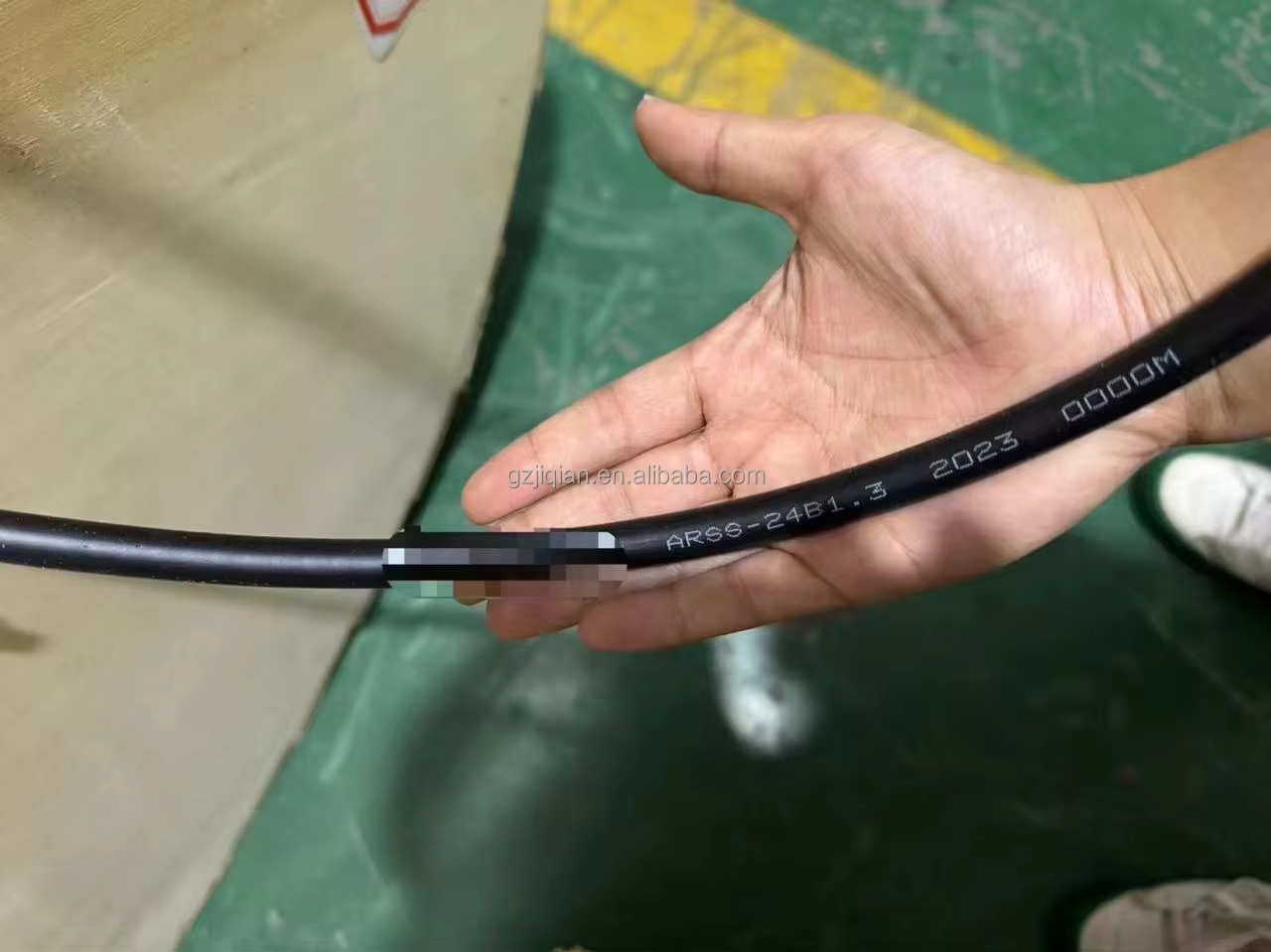

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

WHY CHOOSE US:

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

Certification:

24 Hilos 48 Fo 72 96 144 Core Single / Double Sheath ADSS Outdoor Aerial All Dielectric Fiber Optical Cable Span 100m Pri

FAQ:

★Can I have a sample order?
-Yes,we welcome sample order to test and check quality.

★What about the lead time?
-Sample needs 3-7 days,mass production time needs 7-10 days for order quantity more than 12000 kilometers require 20-25 days.

★Do you have any MOQ limit for order?
-Normally,10kms per one specification and one color.

★How do you ship the goods and how long does it take to arrive?
-We ususlly ship by DHL,UPS,Fedex or TNT for samples,It usually takes 3-5 days to arrive.Airline and sea shiping also optional.

★How to proceed an order for cables?
-Firstly let us know your requirements or application;Secondly we quote according to your requirements or our suggestions;Thirdly customer confirms the samples and places deposit for formal order;Fourthly We arrange production and deliver on time.

★Is it OK to print my logo on cables?
-Yes,Please inform us formally before our production.

★How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at WhatsAapp +86 19120308386 to get free sample.
