Characteristics:

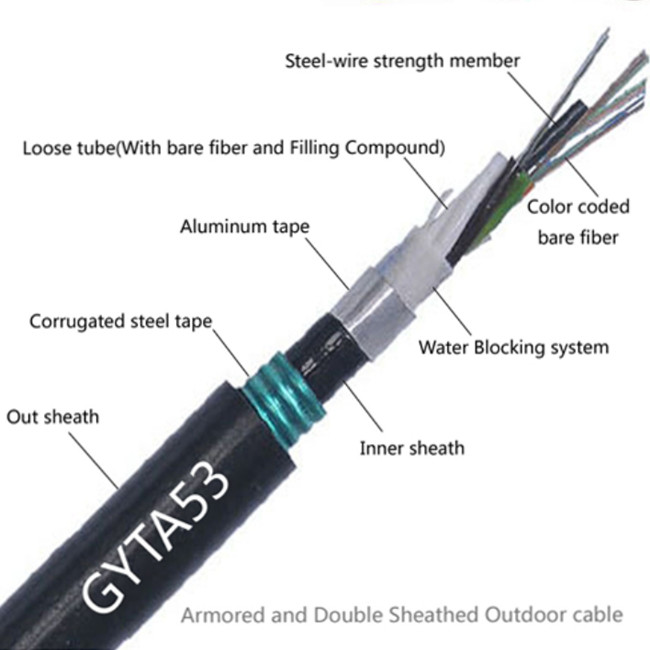

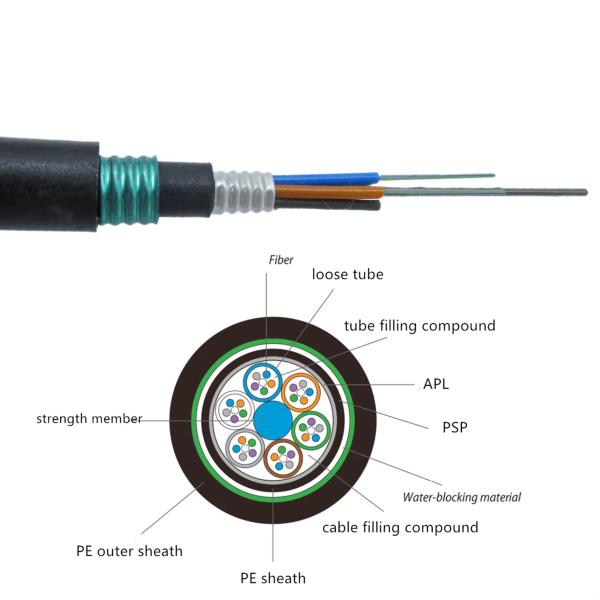

&Loose tubes stranded around the central strength member to form the cable core, the cable core longitudinally bound by aluminum polyethylene laminate, further bonded to the PE inner jacket, moisture barrier and then corrugated steel tape laminated with polyethylene on both sides, the PE outer jacket consisted of medium density polyethylene extrude under cecum condition.
&GYTA53 can be used in aerial cable and duct cable not in direct-buried cable.The A in GYTA53 refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA53 cable has longer service life when used in duct transmission.
1. High tensile strength, good performance on mechanical stress, crush resistance, temperature and transmission.
2. The loose thbes, cable core and all interstices filled with moisture-proof gel and compound, prevent water ingress longiyudinally.
3. The aluminum tape laminated on both sides with polyethylene and closely bonded to PE inner sheath possesses the function of radial moisture-proof for the cable.
Fiber parameter:
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | 0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) | | 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 | | 36 | 1+6 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 8.8±0.3 | 85 | | 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3±0.3 | 90 | | 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 9.3±0.3 | 90 | | 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6±0.3 | 95 | | 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 11.5±0.3 | 120 | | 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.8 | 14.2±0.3 | 185 | | 216 | 1+6+12 | 12 | 1.95±0.1 | 2.0/2.0 | 1.8 | 14.5±0.3 | 200 | | 288 | 1+9+15 | 12 | 1.95±0.1 | 2.0/3.7 | 1.8 | 16.2±0.3 | 240 | |
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Packing

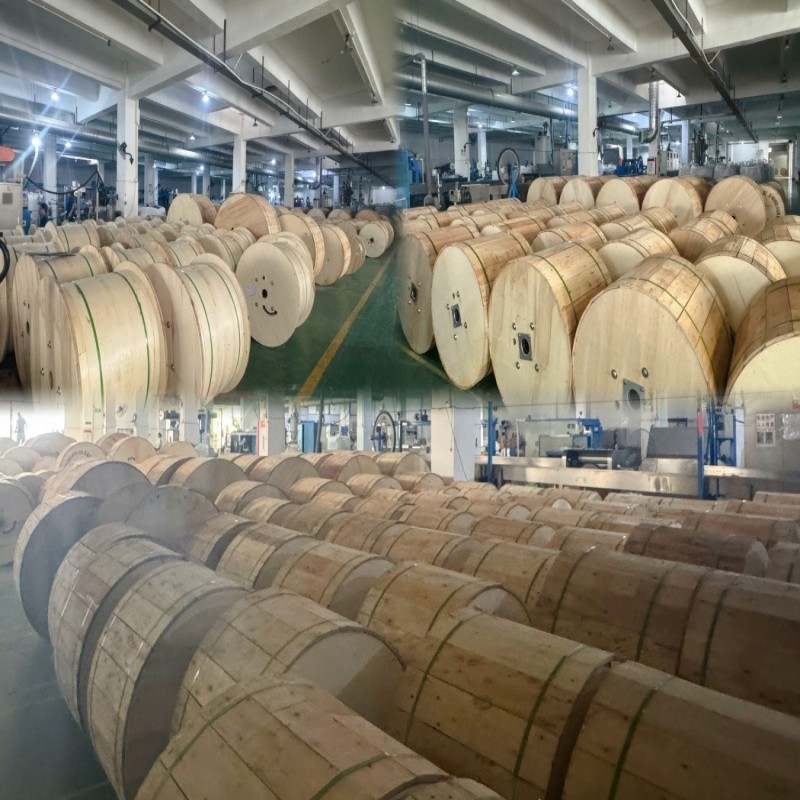

1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Our service:
1. Premium Quality Products: Our cables are engineered to deliver superior performance and reliability, ensuring seamless data transmission.
2. Customized Solutions: We offer tailored solutions to meet specific requirements, from custom designs to length specifications.
3. Global Distribution: Leveraging our international network, we ensure timely delivery of our products to clients worldwide.
4. Technical Support: Our team provides expert guidance and assistance to optimize the performance of our products.
5. Innovation: We stay ahead of the curve by investing in research and development, offering cutting-edge solutions to drive efficiency and growth.
6. Exceptional Customer Service: We prioritize customer satisfaction, fostering long-term partnerships built on trust and reliability.
Certificate:
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
