Brand Name : JQ/OEM
Model Number : GCYFY
Certification : ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin : Guangzhou,China
MOQ : 1km
Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Delivery Time : 5-8 work days
Packaging Details : wooden drum
Fiber count : 4-144Cores
Fiber type : single mode/multi mode
Jacket : PE/PVC/LSZH
Color : Black
Product name : Air-blown Micro Cable
Length : 2km or customized length
Structure : Micro Cable
Installation : Aerial or Duct
Number of conductors : ≥ 10

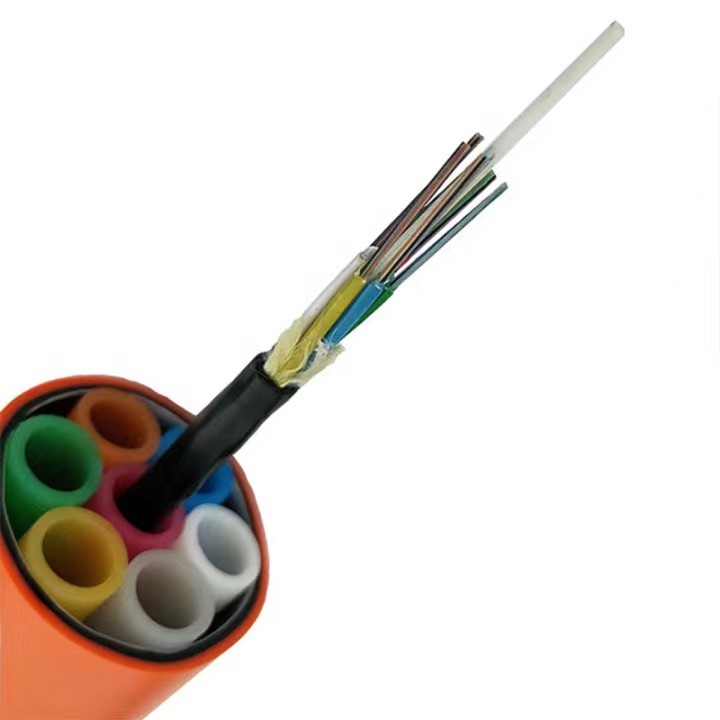

24 48 96 Core GCYFY Air Blown Fiber Micro Cable
Product Description
1. Model: GCYFY

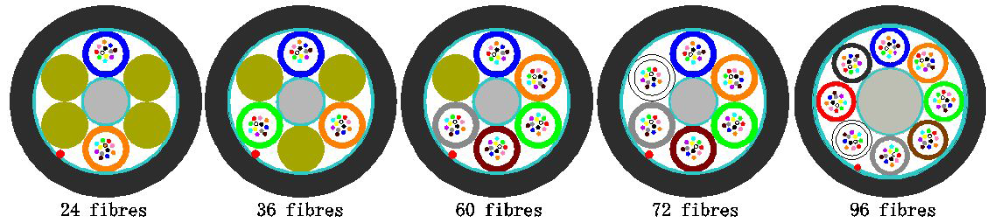

2. Cable Cross-section
Optical Characteristics
Item | Specification |
Fiber type | G.652D |
Attenuation | |
@ 1310 nm | ≤0.36 dB/km |
@ 1383 nm | ≤0.35 dB/km |
@ 1550 nm | ≤0.22 dB/km |
@ 1625 nm | ≤ 0.30 dB/km |
Cable Cut-off Wavelength(λcc) | ≤1260 nm |
Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
Chromatic Dispersion | |
@ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
@ 1550 nm | ≤18 ps/(nm. km) |
@ 1625 nm | ≤22 ps/(nm. km) |
PMDQ | ≤0.2 ps/km1/2 |
Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
Core Concentricity Error | ≤0.6 um |
Cladding Diameter | 125.0±0.7 um |
Cladding Non-circularity | ≤1.0% |
Coating Diameter | 245±10 um |
Proof Test | 100 kpsi (=0.69 Gpa), 1% |

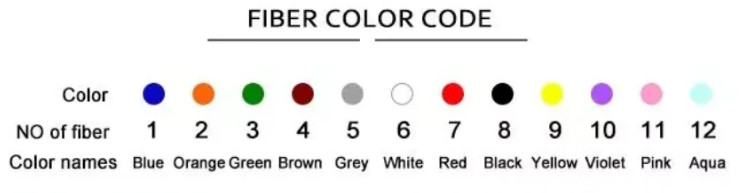

Fiber & Tube Color
• Transport/storage temperature: -40℃ to +70℃
Cable Parameters
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) | Approx. overall diameter (mm) | Approx. weight (kg/km) |
12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Applications
The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks
Delivery Length
• Standard length: 4,000m; other lengths are also available.
