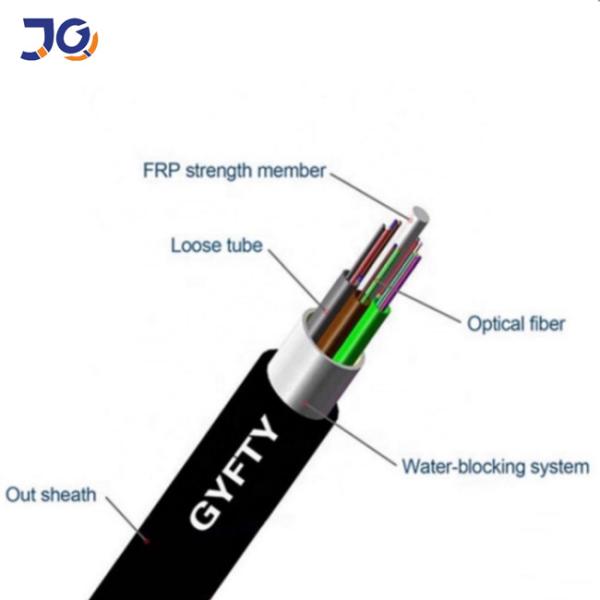

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.
Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
