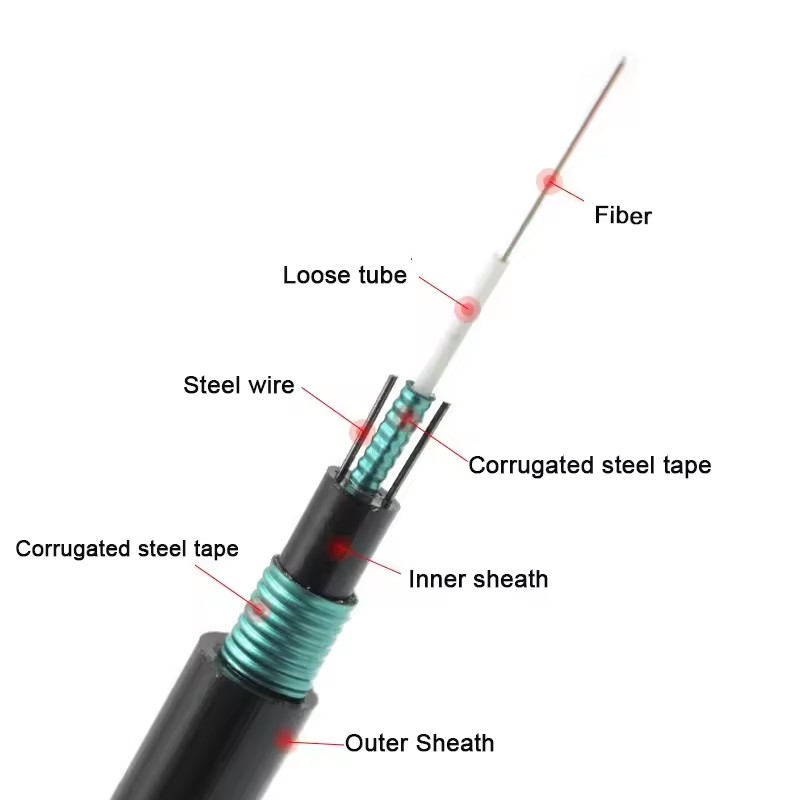

*Steel tape, to ensure tensile strength.
*PSP, longitudinally, excellent crush-resistant performance
*Water-blocking material is applied to keep the cable compact and watertight.
*Completed with a single polyethylene (PE) sheath.
Sign In | Join Free | My frbiz.com |
|
Brand Name : JQ
Model Number : GYXTW53
Certification : CE/ISO9001
Place of Origin : Guangdong, China
MOQ : 1 Kilometer
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Delivery Time : 2-5days
Packaging Details : Wooden Drum
Type : Outdoor Fiber Optic Cable
Number of Conductors : ≥ 10
Fiber type : G652D Single mode or as your request
Length : as required
Color : Customized
Tube : Central Loose Tube
Loose tube material : PBT
Outer Sheath : PE or as your request
Package : Wooden Drum/Customized
Application : Outdoor aerial and duct
Oem : Available
Operating temperature : -40~70℃
Certificate : CE/ROHS/ISO9001
Product Description:
Specification:
Model Number | GYXTW53 |
Fiber count | 2-24 Cores |
Fiber Type | G652D or as your need |
Structure | Central loose Tube |
Jacket material | PE |
Armored | corrugated steel tape/Aluminium tape |
strength member | Two parallel steels |
Certification | CE/ROHS/ISO9001 |
Strength member | Steel Wire |
Application | Buried |
1310nm | ≤0.34dB |
1550nm | ≤0.21dB |
Package | Wooden Reel |
Operating environment: | - 40 ~ 60 ℃ |
Structure and Technical Specifications:
cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | Suitable temperature | |||
(MM) | (KG) | allowable Crush load(N/100mm) | |||||||
Long term | Short term | long Term | short term | long Term | (℃) | ||||
Short term | |||||||||
2 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
4 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
6 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
8 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
10 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
12 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
![]() |
Outdoor Direct Burial 2 4 6 12 24 Core Optical Fiber Cable GYXTW53 SM G.657A1 G652D Armored Fiber Optic Cable Price Images |
