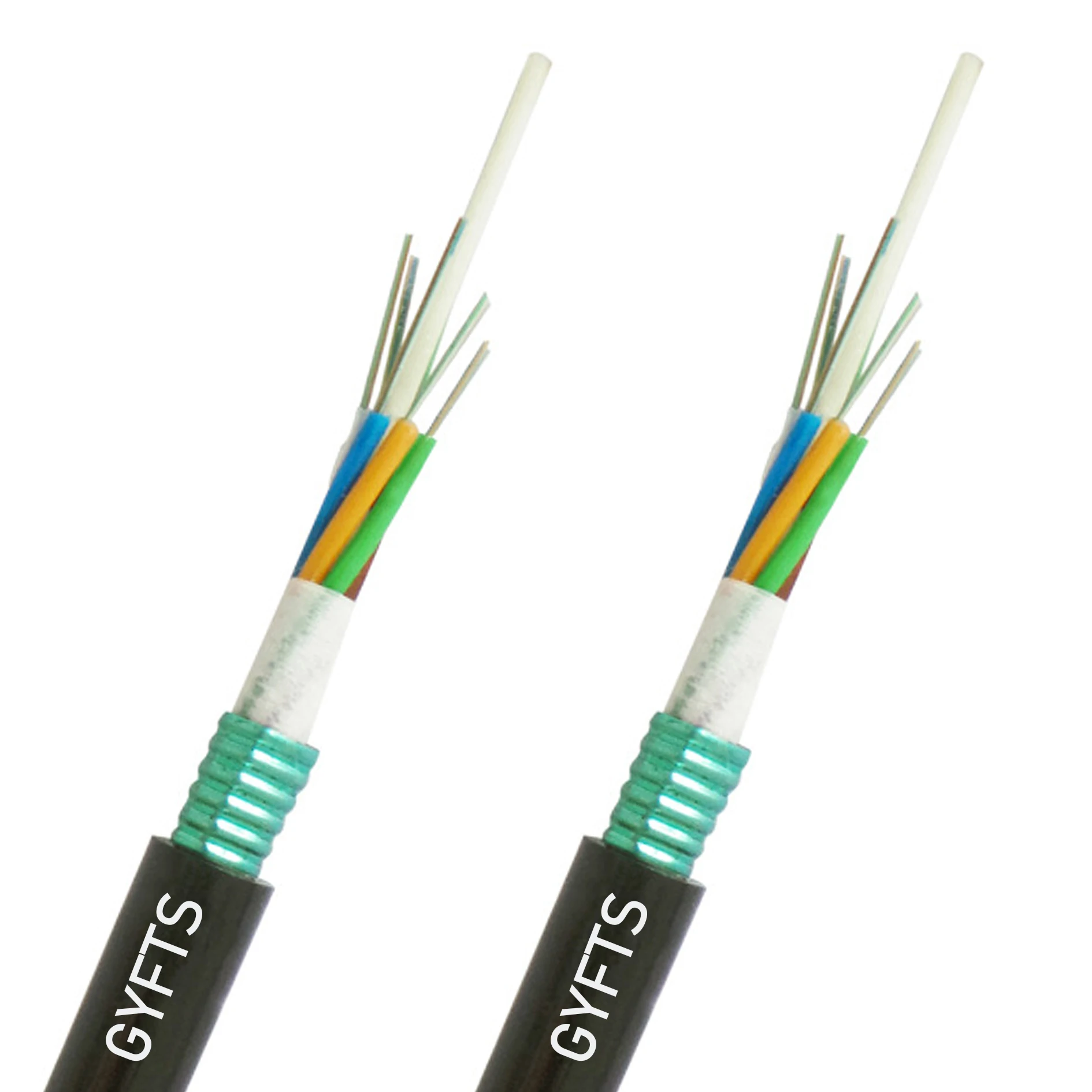

Aerial Overhead GYFTS Fiber Optical Cable 4km/drum G652d Manufacturer Supplier 24 Core Single Mode Fibre Optic Cable

Name: Aerial Overhead GYFTS Fiber Optical Cable 4kmdrum G652d Manufacturer Supplier 24 Core Single Mode Fibre Optic Cable
Brand: Jiqian
Price: 100 USD

China Aerial Overhead GYFTS Fiber Optical Cable 4km/drum G652d Manufacturer Supplier 24 Core Single Mode Fibre Optic Cable wholesale

Brand Name : Jiqian

Model Number : GYFTS

Certification : CE/ISO9001

Place of Origin : Guangdong,China

MOQ : 1KM

Price : 100-600USD/KM

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 4 6 8 10 12 24 48 96 144 288 Core

Strength member : FRP

Warranty : 25 years

MOQ : 1KM

OEM : Yes

Amoured : Yes

Length : 1/2/3/4/5KM

Feature : Armoured cable

Contact Now

Product Description

GYFTS Outdoor Long Distance G652D Aerial Non-Metallic Strength Member FRP Armored Fiber Optic Cables

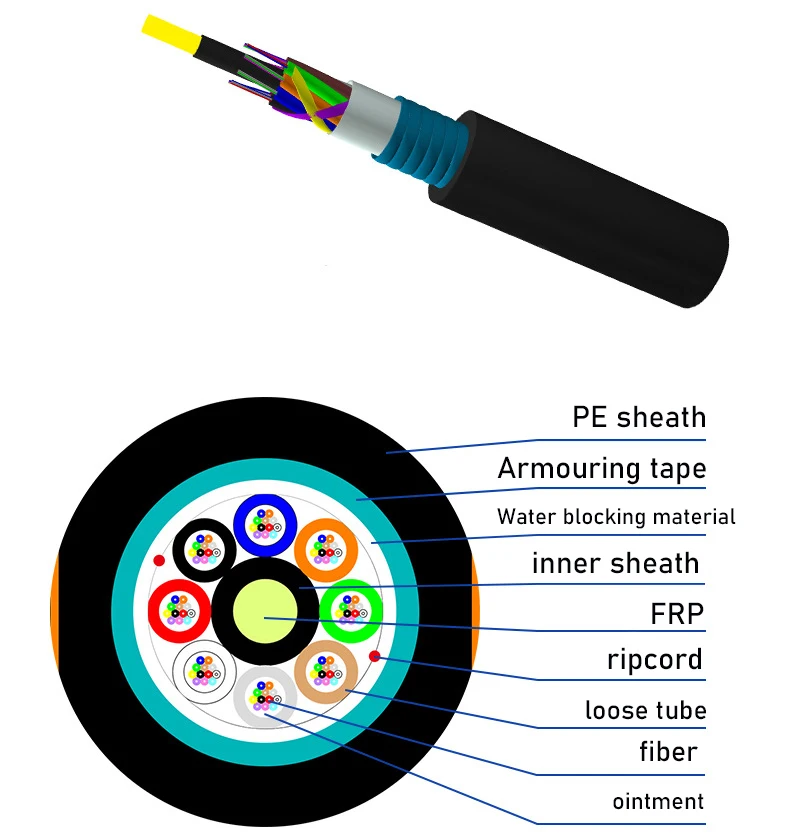

The fiber, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with water-resistant filling compound. A FRP, sometimes sheathed with polyethylene(PE) for cable with high fiber count, located in the centre of core as a non-metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Aerial Overhead GYFTS Fiber Optical Cable 4km/drum G652d Manufacturer Supplier 24 Core Single Mode Fibre Optic Cable

Temperature Range:
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃

Characteristics:
1.Excellent mechanical and temperature
performance guaranteed by the accurate excess Fiber length
2.Critical protection to fibers
3.The following measures are taken to ensure the
water blocking performance of the cable.
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
- 100% cable core filling

PRODUCT SPECIFICATIONS

Fiber Model	G.652D
Loose tube	Material	PBT
	Diameter(±0.03)mm	0.35
	Thickness(±0.06)mm	3.0
Central Strength Member	Fiber Reinforced Plastic
Outer Sheath	Material	PE
Outer Sheath	Thickness(±0.1)mm	1.3
Cable Diameter(±0.2)mm		6.4
Cable Weight(±5)kg/km		49
Min. bending radius	Without Tension	15.0×Cable-φ
Min. bending radius	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-5~+50
	Transport&Storage	-30~+70
	Operation	-20~+70

Related Products

Company Profile

Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you. The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:Where is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.

7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
