Armoured Outdoor Fibre Optic Cable 2-288 Cores Duct Optical Fibre Cable

Brand Name : JQ

Model Number : GYTA 12core/24core/48core

Certification : ISO

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per 2 day

Delivery Time : 2-4day

Packaging Details : wooden drum

Fiber type : G652D

Oem : Available

Application : duct

Number of conductors : 24core 48core 72core

Structure : Stranded loose tube

Operating temperature : -40 ~ +60 C

central strength member : Aluminium Wires

Contact Now

12 24 48 core armoured underground GYTA G652D fiber optical cable Outdoor

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber

counts with the flexibility and versatility required for today's most demanding installations, including duct and

underground conduit.

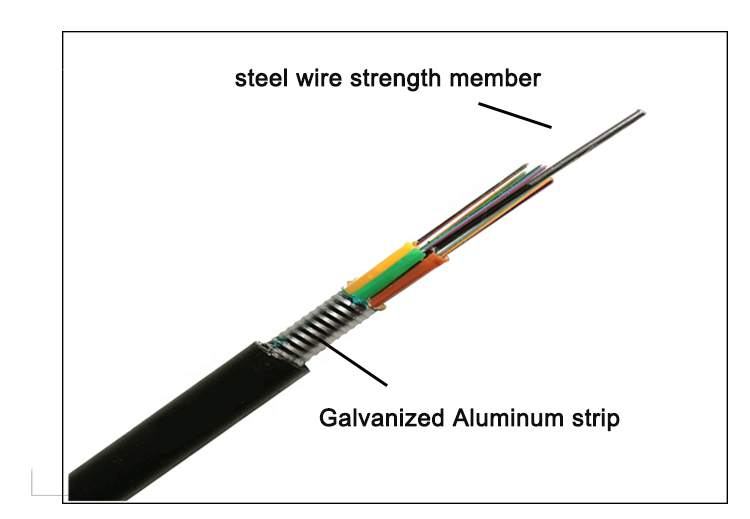

Product Construction:

Fiber:

2-288 fiber

Multi-loose tube gel-filled

Central Strength Member:

Fiberglass reinforced Platic (FRP) or steel wire.

Armor:

Aluminum Tape Armor

Outer Jacket:

Black UV Polyethylene(PE)

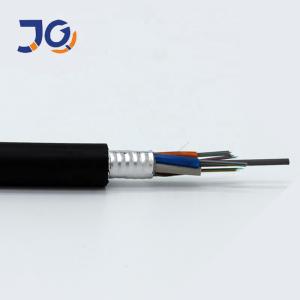

Armoured Outdoor Fibre Optic Cable 2-288 Cores Duct Optical Fibre Cable

Application:

1 ,Interbuilding voice or data communication backbone.

2 ,Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19.0	325	12	24(2 layers)	2500	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
