Stranded Loose Tube Air - Blown Micro Duct Cable 96 Core GCYFY

Name: Stranded Loose Tube Air Blown Micro Duct Cable 96 Core GCYFY
Brand: JQ/OEM
Price: 1 USD

China Stranded Loose Tube Air - Blown Micro Duct Cable 96 Core GCYFY wholesale

Brand Name : JQ/OEM

Model Number : GCYFY/GCYFTY

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30km per day

Delivery Time : 5-8 work days

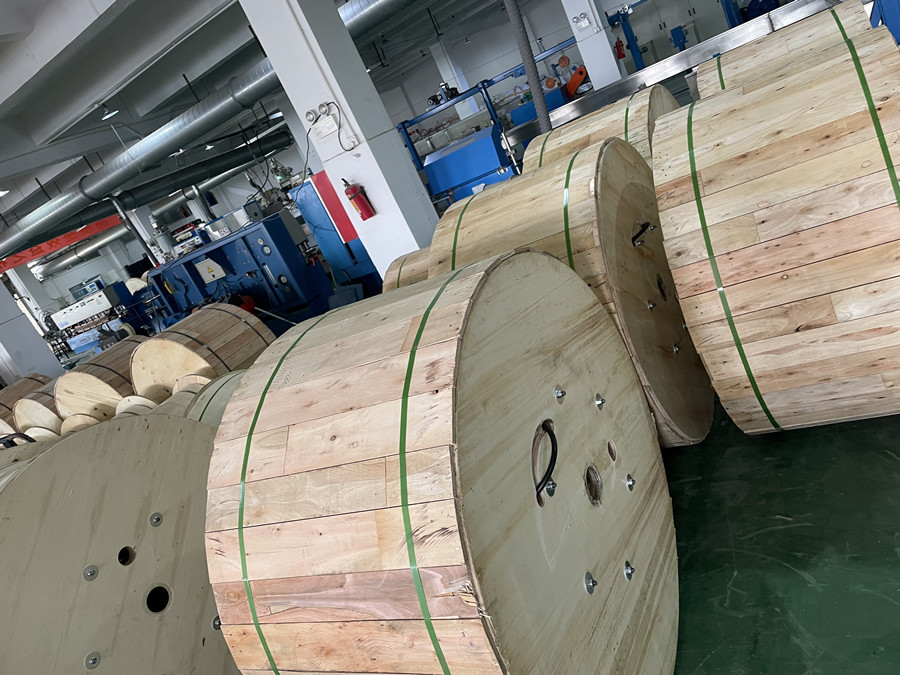

Packaging Details : wooden drum

Fiber count : 4-144Cores

Fiber type : single mode/multi mode

Jacket : PE/PVC/LSZH

Color : Black

Product name : Air-blown Micro Cable

Length : 2km or customized length

Structure : Micro Cable

Installation : Aerial or Duct

Number of conductors : ≥ 10

Contact Now

Stranded Loose Tube Air-blown Micro Duct Cable GCYFY

Product Description

1. Model: GCYFY-96B1.3

2. Cable Cross-section

Stranded Loose Tube Air - Blown Micro Duct Cable 96 Core GCYFY

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand

Stranded Loose Tube Air - Blown Micro Duct Cable 96 Core GCYFY

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Applications

• The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks.

Delivery Length

• Standard length: 2,000m; other lengths are also available.

Stranded Loose Tube Air - Blown Micro Duct Cable 96 Core GCYFY
