Factory price outdoor underground singlemode armored double jacket 24 48 core fiber optic cable GYTA53
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 36 | 1+5 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 11.5±0.2 | 140 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 145 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 150 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 12.2±0.2 | 160 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 13.8±0.2 | 180 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.6 | 16.7±0.3 | 245 |
Drum
| Cable type | Drum |
| Height (mm) | Width (mm) | Inner diameter (mm) | Length (km) | Drum type |
| GYTA53-(4-30) | 1000 | 720 | 400 | 2 | wood drum |
| GYTA53-(36-60) | 1000 | 720 | 400 | 2 | wood drum |
| GYTA53-72 | 1100 | 720 | 450 | 2 | wood drum |
| GYTA53-96 | 1200 | 720 | 550 | 2 | wood drum |
| GYTA53-144 | 1400 | 800 | 700 | 2 | wood drum |
Note:Special cable structure can be designed and manufactured on customer’s request.
Features
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTA53) and Double jacket double armored(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, Duct Underground conduits.
Packing
wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
Product Tags:
|
|

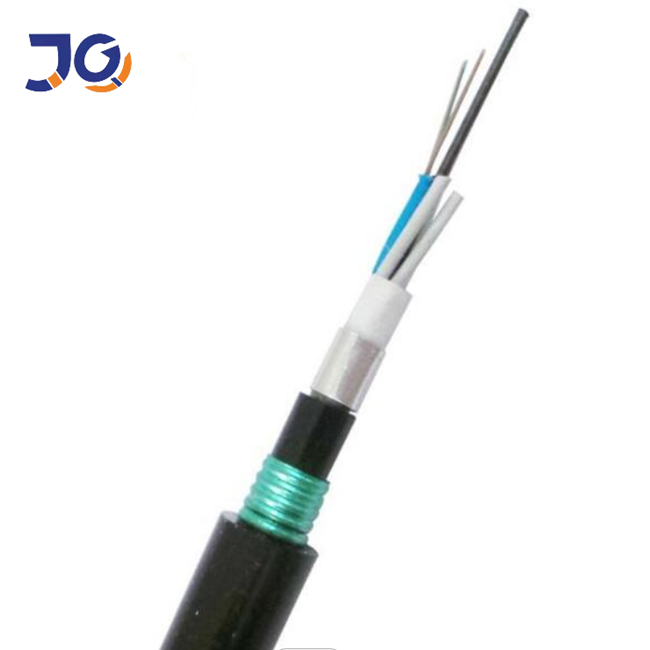

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53 Images
|
