Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8

Brand Name : JQ

Model Number : gyxtc8y

Certification : ISO9001/ ROHS/ CE/ FCC

Place of Origin : Guangdong China

MOQ : 1kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 4-6 work days

Packaging Details : Wooden Drum

Type : Fiber Optic Cable

Suspension wire material : Steel Wire

Sheath Material : PE

Applicaion : Aerial

Product Name : Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable

Temperature range : -20°~70°C

Fiber type : G.652D

Life span : More than 30 years

Contact Now

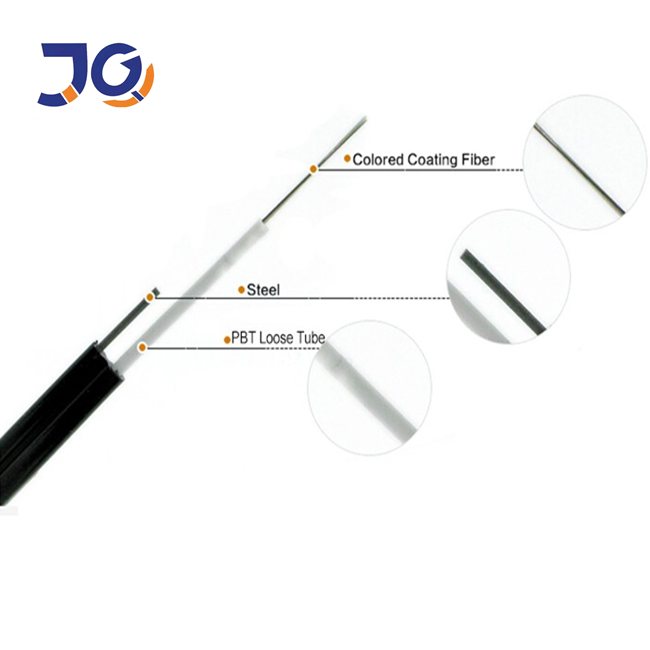

Introduction:
The cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.
features:
Loose tube gel-filled construction for superior fiber protection.
 UV and moisture-resistant design
 Self-supporting Figure 8 design.
Standards:
Comply with Standard YD/T 1155-2001 as well as IEC60794-1.
Tempeature:
Operating /Storage:-20°c +70°c
Cable Dimensions and Constructions
  	 			Items
 			Descriptions


 			Fiber
 			Fiber type
 			G.652D

 			Fiber count
 			2~12

 			Color
 			Green/Yellow/White/Blue/Red//Violet/Brown/
 			Pink/Black/Grey/Orange/Aqua


 			Loose tube
 			Material
 			PBT

 			Diameter
 			2- 6cores:2.3 ±0.1mm
 			8-12 cores: 2.5 ±0.1mm

 			Water-blocking material
 			Gel-filled


 			Strength Member
 			Material
 			Aramid yarn/ Glass Yarn

 			Material
 			Water-blocking aramid yarn

 			Messenger Wire
 			Material
 			Steel wire

 			Diameter
 			1.2mm/1.0MM/1.3MM



 			Outer jacket
 			Material
 			PE
 			Color
 			Black

 			Thickness
 			2-12 cores: 0.8 ±0.2mm

 			Diameter
 			2-12 cores: 7.2±0.3mm×17.8mm±0.3mm


Applications
Backbones and Access.
 Installed aerially.

Product Tags:

G.625d Outdoor Fiber Optic Cable

gyxtc8y Outdoor Fiber Optic Cable

Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8 Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Items		Descriptions
Fiber	Fiber type	G.652D
	Fiber count	2~12
	Color	Green/Yellow/White/Blue/Red//Violet/Brown/ Pink/Black/Grey/Orange/Aqua
Loose tube	Material	PBT
	Diameter	2- 6cores:2.3 ±0.1mm 8-12 cores: 2.5 ±0.1mm
	Water-blocking material	Gel-filled
Strength Member	Material	Aramid yarn/ Glass Yarn
Strength Member	Material	Water-blocking aramid yarn
Messenger Wire	Material	Steel wire
Messenger Wire	Diameter	1.2mm/1.0MM/1.3MM
Outer jacket	Material	PE
	Color	Black
	Thickness	2-12 cores: 0.8 ±0.2mm
	Diameter	2-12 cores: 7.2±0.3mm×17.8mm±0.3mm
