48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

Name: 48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color
Brand: Jiqian
Price: 1 USD

China 48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color wholesale

Brand Name : Jiqian

Model Number : GYFTY

Certification : CE/ISO9001

Place of Origin : Guangdong,China

MOQ : 1KM

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 2-288 Cores

Jacket : PE

Color : Black

Lift time : 25 years

OEM : Yes

Fiber Brand : YOFC

Fiber Type : G652D, G657D

Strength member : FRP

Applications : Aerial/Pipeline

Contact Now

48 96 Core Single Mode Duct Best Fiber Optic Cable Gyfty

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

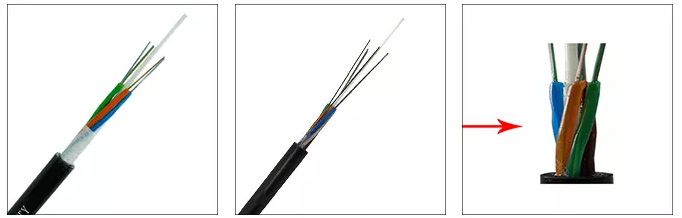

Product Show

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

Product Details

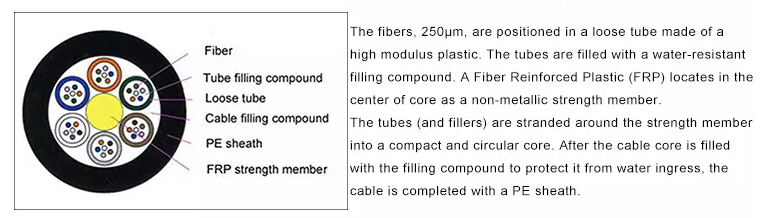

Product Feature

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	8.8±0.2	62
6	1+5	6	1.9±0.1	1.4/1.4	1.6	8.8±0.2	62
8	1+5	8	1.9±0.1	1.4/1.4	1.6	8.8±0.2	62
12	1+5	6	1.9±0.1	1.4/1.4	1.6	9.0±0.2	65
24	1+5	6	1.9±0.3	1.4/1.4	1.6	9.2±0.2	68
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.2±0.2	68
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.2±0.2	68
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6	80
96	1+8	12	2.2±0.1	2.2/3.5	1.6	12.0	103
144	1+12	12	2.2±0.1	2.2/6.4	1.8	15.0	180

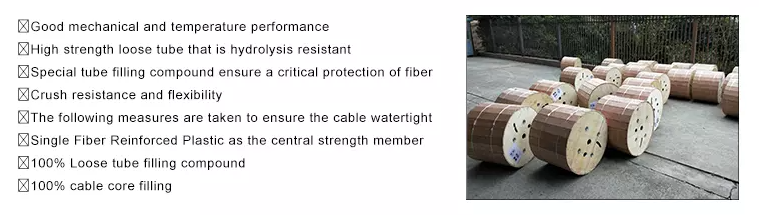

 Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
 2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

Delivery
 For large orders: by sea (LCL or FCL)
 For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
