48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Name: 48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
Brand: Jiqian
Price: 1 USD

China 48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket wholesale

Brand Name : Jiqian

Model Number : GYTS

Certification : CE/ISO9001

Place of Origin : Guangdong,China

MOQ : 1KM

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 2-288Cores

Jacket : PE

Color : Black

Warranty : 25 years

OEM : Yes

Fiber Brand : YOFC

Armoured : Yes

Length : 1km/2km/3km/4km

Contact Now

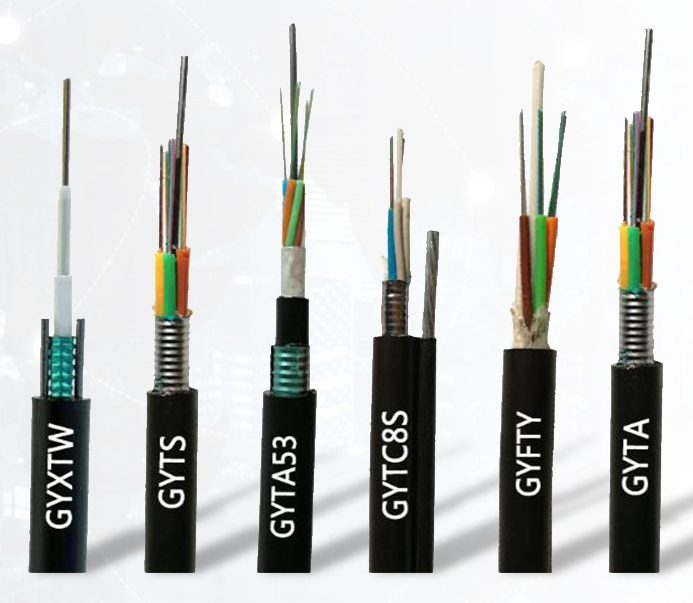

12 24 48 Core Loose Tube Stranded Cable Armoured Optical Fiber Communication Cable GYTS Outdoor Fiber Cable

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

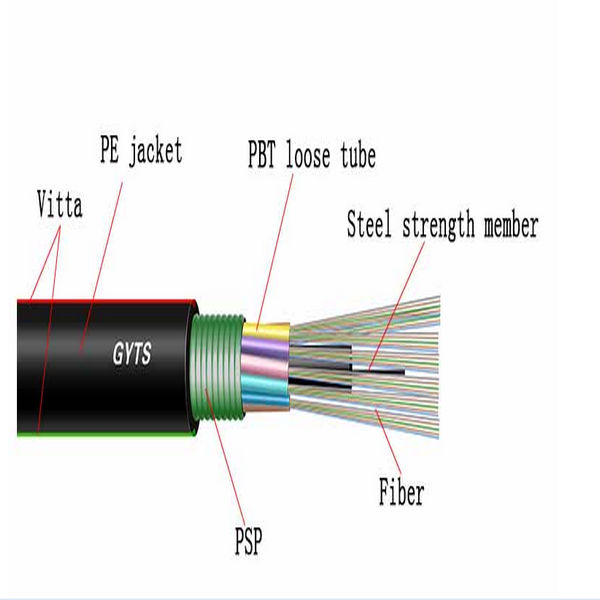

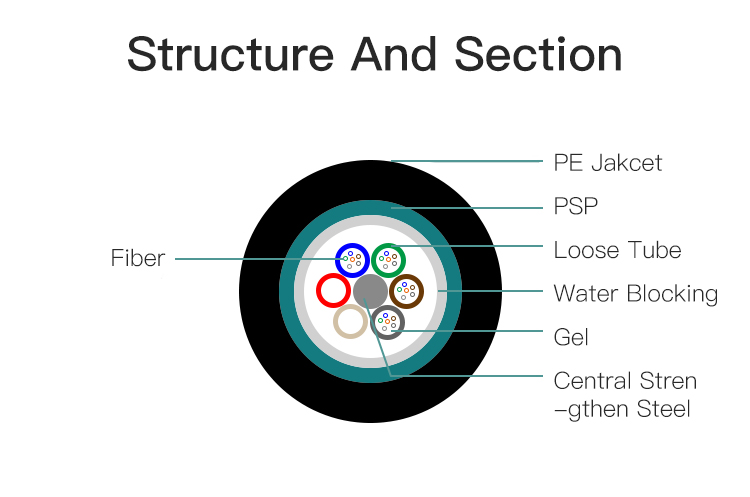

Construction:

1. Fiber

2. Jelly filling the tube

3. PBT loose tube

4. Jelly filling the cable

5. Corrugated armored

6. Steel wire central Strength

7. Water block tape

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

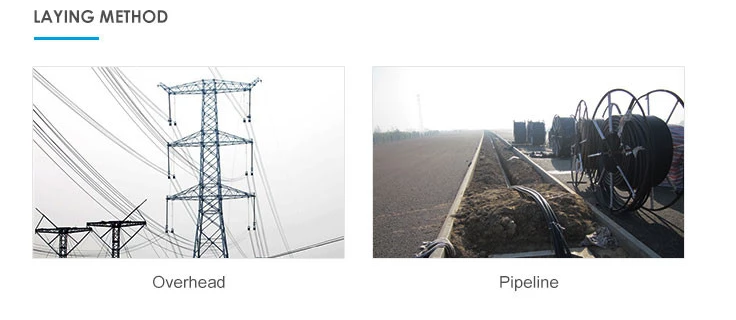

Applications:
Dimensions of Cable Constructions
 	 			Fiber count 			Structure 			Fibers per tube 			Loose tube diameter
(mm)
 			CSM diameter/pad diameter
(mm)
 			Nominal Thickness of outer jacket
(mm)
 			Cable diameter/
Height
(mm)
 			Cable weight
(kg/km)

 			4 			1+5 			4 			1.8±0.1 			1.4/1.4 			1.4 			9.0±0.3 			80
 			6 			1+5 			6 			1.9±0.1 			1.4/1.4 			1.4 			9.0±0.3 			80
 			8 			1+5 			8 			1.9±0.1 			1.4/1.4 			1.4 			9.0±0.3 			80
 			12 			1+5 			6 			1.9±0.1 			1.4/1.4 			1.4 			9.0±0.3 			80
 			24 			1+5 			6 			1.9±0.1 			1.4/1.4 			1.4 			9.0±0.3 			85
 			36 			1+6 			12 			2.2±0.1 			1.6/1.6 			1.6 			9.7±0.3 			100
 			48 			1+5 			12 			2.2±0.1 			1.6/1.6 			1.6 			9.7±0.3 			105
 			60 			1+5 			12 			2.2±0.1 			1.6/1.6 			1.6 			9.7±0.3 			110
 			72 			1+6 			12 			2.2±0.1 			2.0/2.0 			1.6 			10.6±0.3 			122
 			96 			1+8 			12 			2.2±0.1 			1.6/3.5 			1.6 			12.0±0.3 			160
 			144 			1+12 			12 			2.2±0.1 			2.0/6.4 			1.8 			15.6±0.3 			240
 			216 			1+6+12 			12 			2.2±0.1 			2.2/2.2 			1.8 			16.0±0.3 			270
 			288 			1+9+15 			12 			2.2±0.1 			2.2/4.3 			2.0 			18.2±0.3 			282

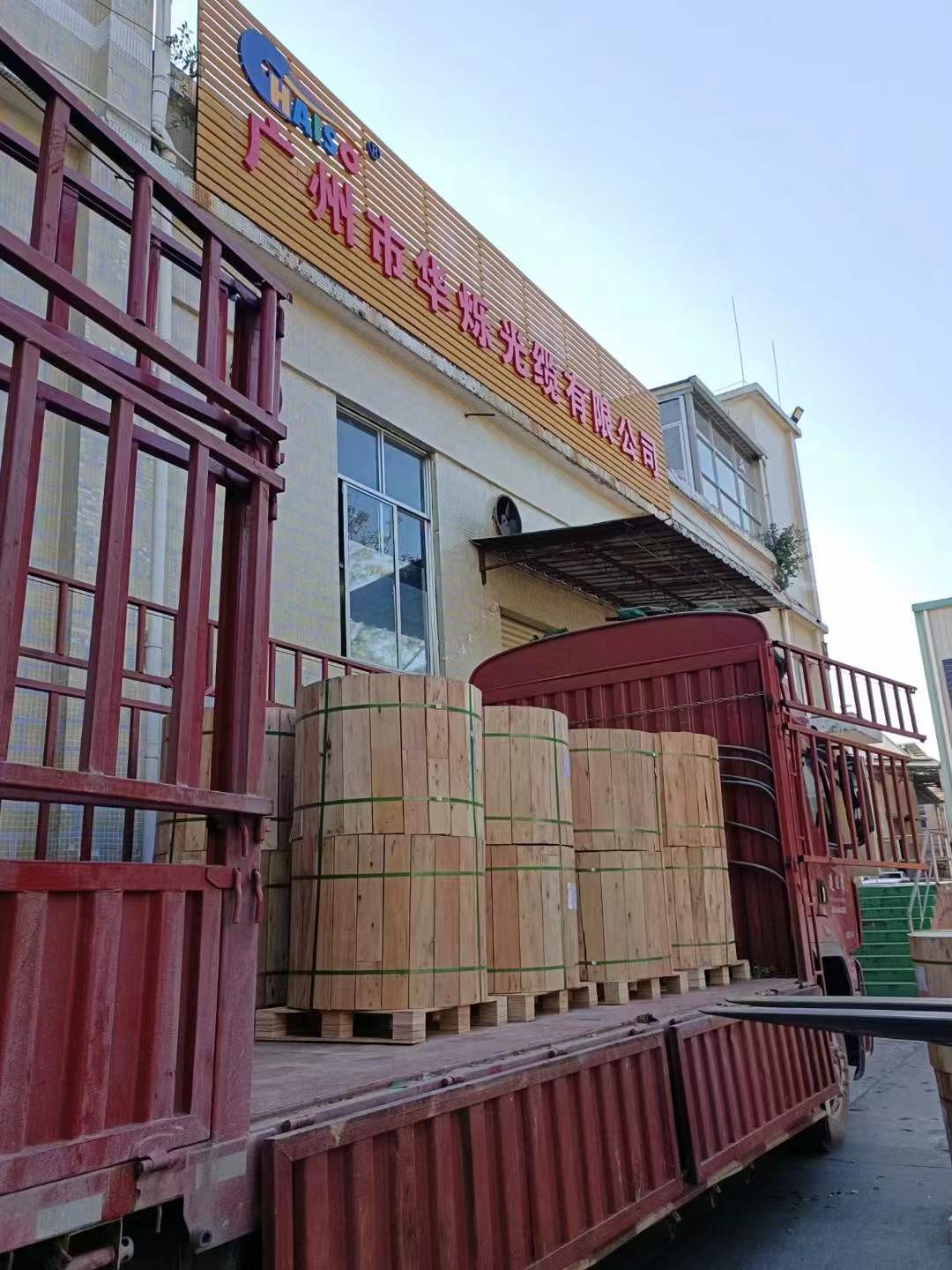

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Delivery
 For large orders: by sea (LCL or FCL)
 For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Company Picture

We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
