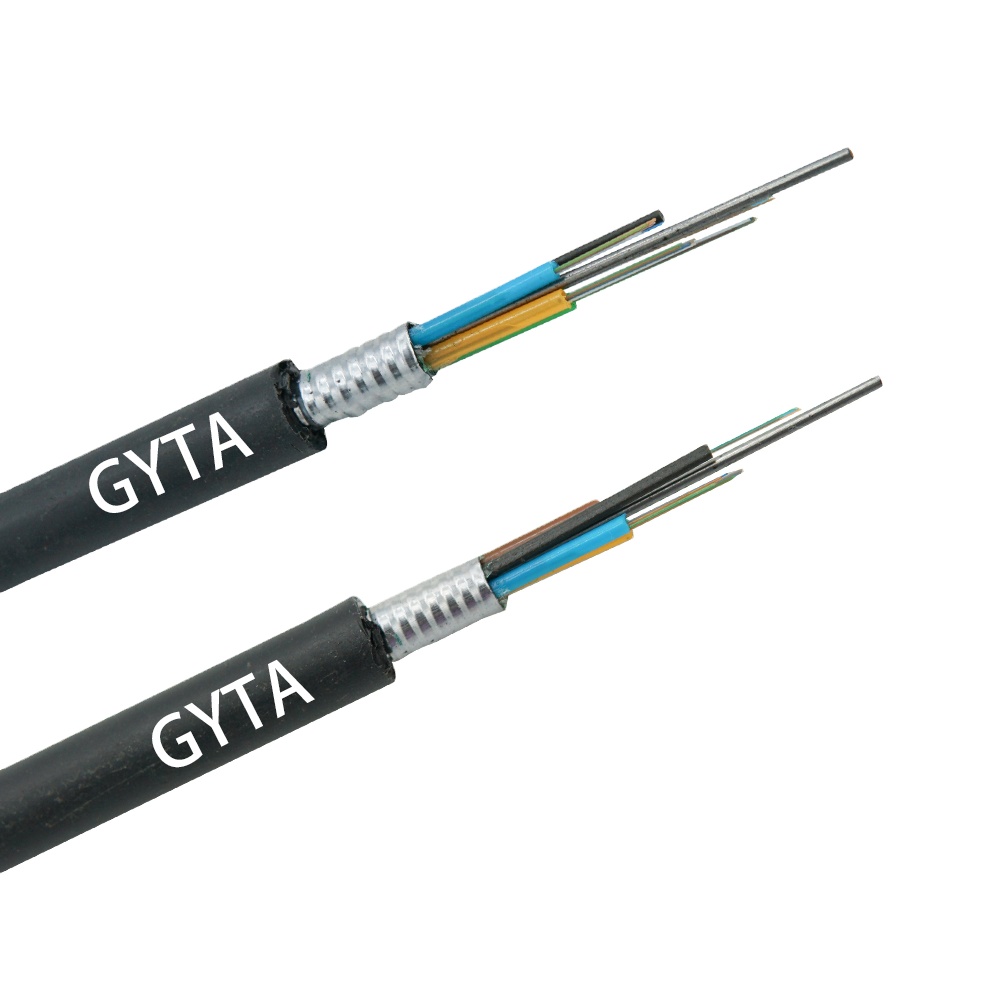

Aerial Outdoor 1km 2km Price Per Meter Single Mode 2 4 6 8 12 16 24 48 Cores GYTA Fiber Optic Cable

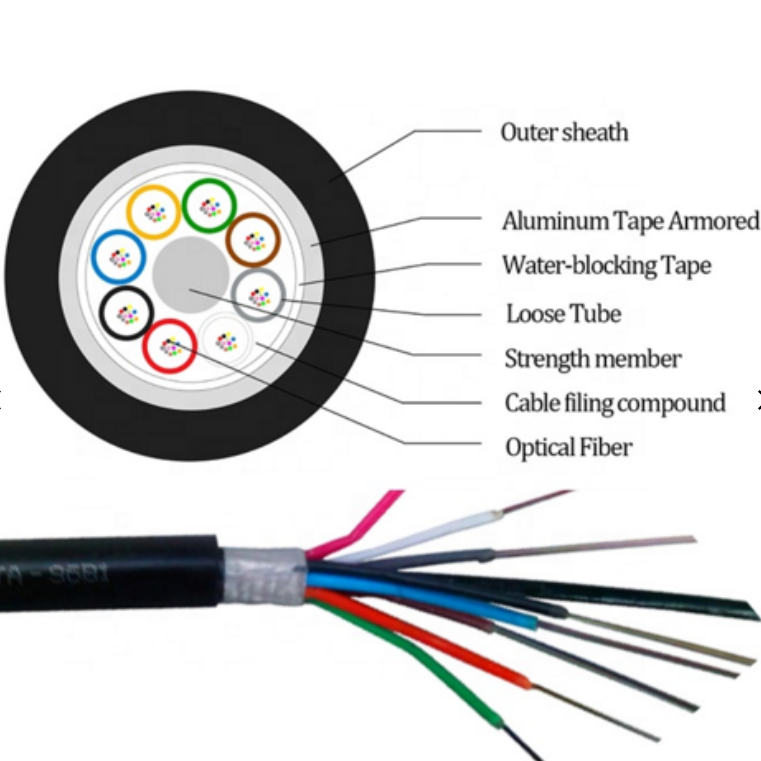

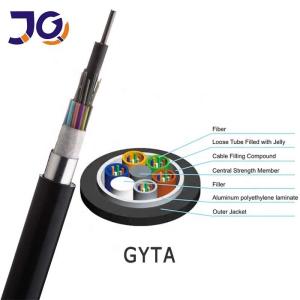

Structure
1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
2.The tubes are filled with a water-resistant filling compound.

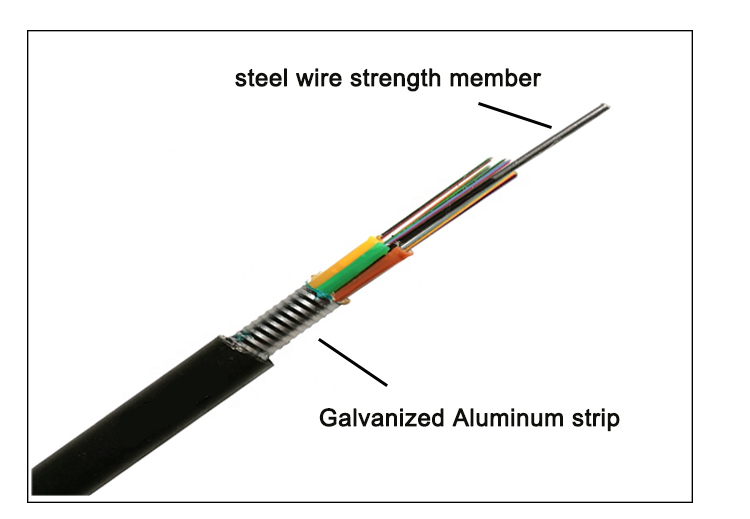

3.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
4.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
5.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
6.Then, the cable is completed with a PE sheath.
Features:
1.Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4.Specially designed compact structure is good at preventing loose tubes from shrinking
5.PE sheath protects cable from ultraviolet radiation
6.The following measures are taken to ensure the cable watertight
7.Steel wire used as the central strength member
8.Loose tube filling compound
9.100% cable core filling
10.APL moisture barrier
Technical Data
| | |
| | |
| | |
| | |
| | | |
| | |
Min allowable Tensile Strength(N) | | |
| | |
Operation temperature (℃) | |
Installation temperature(℃) | |
| | |
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
