Anti Rodent GYTS MultiLoose Tube Outdoor Fiber Optic Cable

Name: Anti Rodent GYTS MultiLoose Tube Outdoor Fiber Optic Cable
Brand: Jiqian
Price: 1 USD

China Anti Rodent GYTS MultiLoose Tube Outdoor Fiber Optic Cable wholesale

Brand Name : Jiqian

Model Number : GYTS/GYTA/GYTA53

Certification : ISO9001/ROHS/CE/FCC

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : T/T,Alipay, Western Union, L/C

Supply Ability : 6000km per month

Delivery Time : 3-5 days,it depends on order quantity

Packaging Details : Plywood drum

Number of Conductors : ≥ 10

Fiber count : 4-288 cores

Installation : Conduit/Underground

Strength member: Central : Steel Wire or FIberglass reinforced plastic (FRP)

Manufacturer : Yes

Contact Now

Anti-rodent armoured optic fibre cable GYTA GYTA53 GYTS MultiLoose Tube 24 48 Fibers

Anti Rodent GYTS MultiLoose Tube Outdoor Fiber Optic Cable

Features:
Choice of Fibre Type
Colour code of Fiber
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance

Appicable fields:

Duct/Underground

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Cable Performance

Item		Parameters
Fiber Count		48
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose tube	Dimension	2.2mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
Filler	Color	Black
Central Strength Member	Dimension	1.6mm±0.05mm
Central Strength Member	Material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip
Outer jacket	Material	PE
Outer jacket	Color	Black

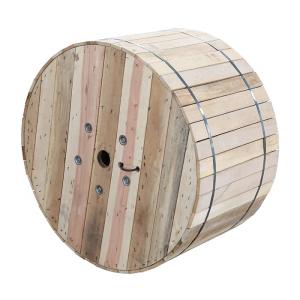

Packing:

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001-2000

6.What is your delivery time?

Usually within 3-5 working days

7.What is your fiber brand?

Corning,YOFC ,Fiberhome

8.What is your payment way?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
