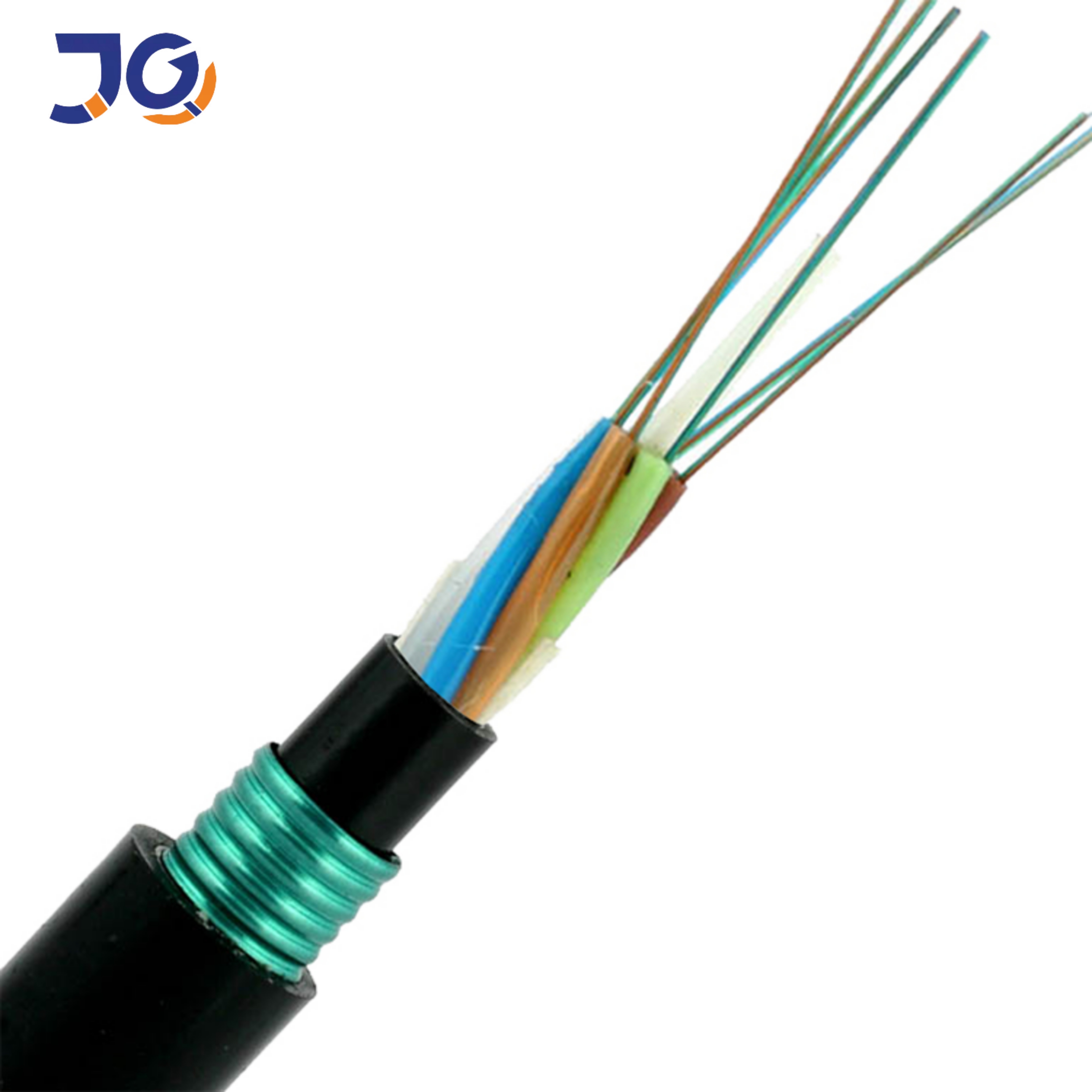

12 Core Sm/mm Underground Fiber Optic Cable G657A

Name: 12 Core Smmm Underground Fiber Optic Cable G657A
Brand: Jiqian
Price: 1 USD

China 12 Core Sm/mm Underground Fiber Optic Cable G657A wholesale

Brand Name : Jiqian

Model Number : GYFTY53

Certification : CE/ISO9001

Place of Origin : Guangdong, China

MOQ : 1KM

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 2-288 cores

Cable Structure : Double Jacket

Strength member : FRP or steel wire

Application : underground

Fiber options : G652D ,G657A

Jacket : PE

Color : Black

Warranty : 25 yaers

Contact Now

12 24 48 Core Underground Sm/mm Double Jacket Fiber Optic Cable Gyfty53

12 Core Sm/mm Underground Fiber Optic Cable G657A

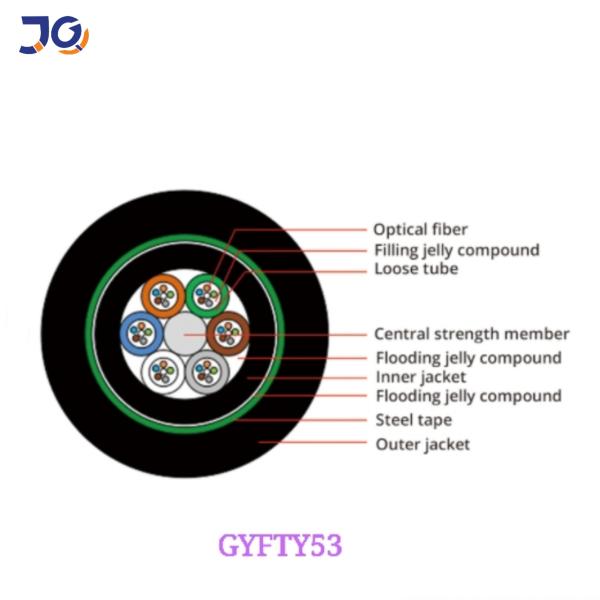

GYFTY53 fiber cable consists of :

1.Fiber

2.Loose Tube Filled with Jelly

3.Central Strength Member

4.Filler

5.Cable Filling Compound

6.Inner Jacket

7.Outer Jacket

12 Core Sm/mm Underground Fiber Optic Cable G657A

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility

12 Core Sm/mm Underground Fiber Optic Cable G657A

Application

Interbuilding voice or data communication backbone,Installed in duct,underground conduit.

12 Core Sm/mm Underground Fiber Optic Cable G657A

Optical Characteristics:

Fiber		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850nm			<3.0dB/km	<3.3dB/km
	1300nm			<1.0dB/km	<1.0dB/km
	1310nm	<0.36dB/km	<0.40dB/km
	1550nm	<0.22dB/km	<0.23dB/km
Bandwidth	850nm			>500MHz-km	>200MHz-km
Bandwidth	1300nm			>500MHz-km	>500MHz-km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength cc		<1260nm	<1450nm

12 Core Sm/mm Underground Fiber Optic Cable G657A
