All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable

Name: All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable
Brand: JQ/OEM
Price: 1 USD

China All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable wholesale

Brand Name : JQ/OEM

Model Number : ADSS-DJ

Certification : ISO9001 ROHS CE FCC

Place of Origin : Guangzhou

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Color : Black,Customized

Length : 4km or customized length

Jacket material : PE

Name : ADSS Optical Fiber Cable

Strength member : FRP

Application : Aerial

Operating temperature : -40 ~ +60 C

Type : ADSS,S-Z stranded type

Fiber type : G652D

Packing : 2-4km/wooden drum

Structure : multi core,Stranded Loose Tube

Oem : accpet,YES,accept

Contact Now

All-Dielectric self-supporting aerial ADSS 144 Cores outdoor Fiber Optic Cable

ADSS-2-144B1-PE-100

Benefits

Fiber Count up to 216f
The dry water blocking materials can easily be removed without the use of cable cleaning solvents, yielding significant labor cost savings
Suitable for all types of aerial lines
Rapid deployment
Installs on live power lines
Available for long, medium and short spans

Fiber Types

G.651 multi-mode fiber
G.652D single-mode fiber
G.655 NZDS fiber for DWDM applications

Full range of protections

Water Blocked

Full range of applications

Outdoor
Aerial

Optional protections

Track resistant

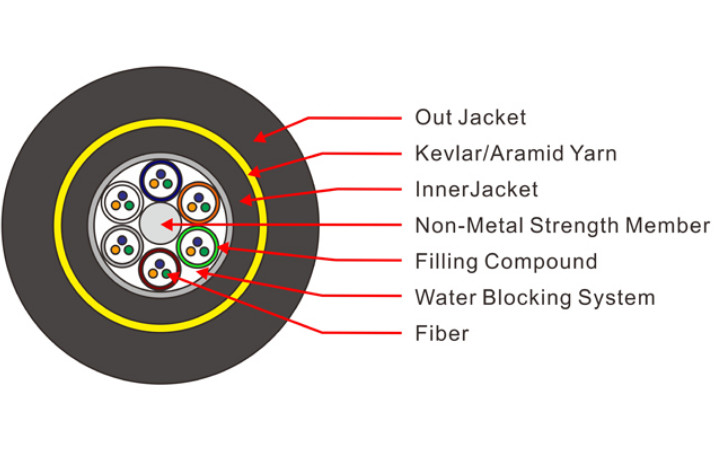

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.2	82
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.2	82
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.2	82
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.2	82
24	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.2	85
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.2	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.2	88
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.5±0.3	98
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/7.2	1.7	15.2±0.3	175

All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 1~4km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable

Shipping:

By sea/by air or express delivery,it depends on the order quantity

Lead time:

Quantity(km)	1-300	Above 300
Earliest time(day)	7-10	Negotiable
