6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable

Name: 6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable
Brand: jiqian
Price: 1 USD

China 6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable wholesale

Brand Name : jiqian

Model Number : GYFXTY

Certification : ISO

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per 2 day

Delivery Time : 2-4day

Packaging Details : wooden drum

Fiber type : G657A1/A2/G652D/G657A1/G657A2

Oem : Available

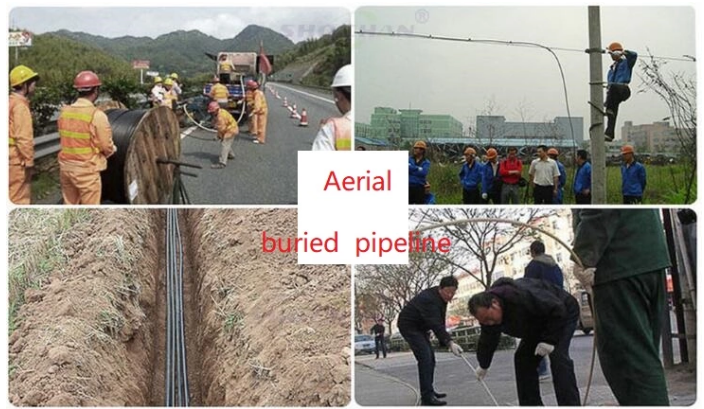

Application : Aerial

Structure : Unitube

Operating temperature : -40 ~ +60 C

Sheath material : HDPE/MDPE

Installation : aerial

CORE : 4 6 8 12

Contact Now

4core 6core outdoor GYFXTY Single Mode G652D Fiber optic cable

Manufacturing 2 4 6 8 12 Core Fiber Optic Cable Gyfxty Optical Outdoor Cable

6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.15NA
Cable Cut-off Wave length		≤1260nm	≤1480nm

Structure and Technical Specifications OF GYFXTY :

Fiber count	Cable diameter(mm)	Nominal weight(KGS)	Allowable Tensile Load(mm)		Allowable Crush Resistance(N/100m)
			Short term	Long term	Short term	Long term
2-12	6.0-9.0	60	1500	600	1500	600

Feature:

1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5.Light weight and small diameter, easy to installation and operation.

6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact. 6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable

Product Tags:

G652D Outdoor Fiber Optic Cable

HDPE Outdoor Fiber Optic Cable

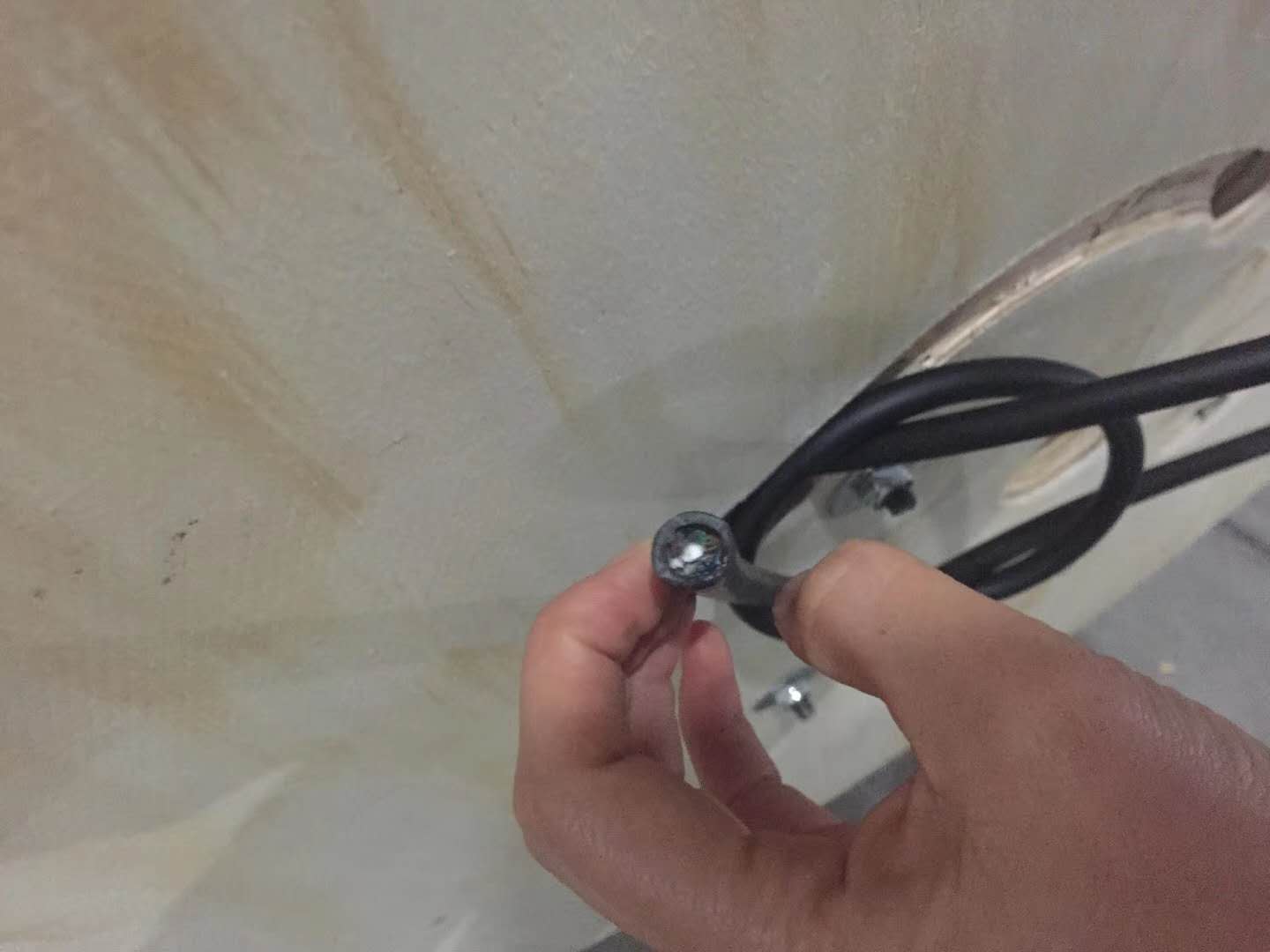

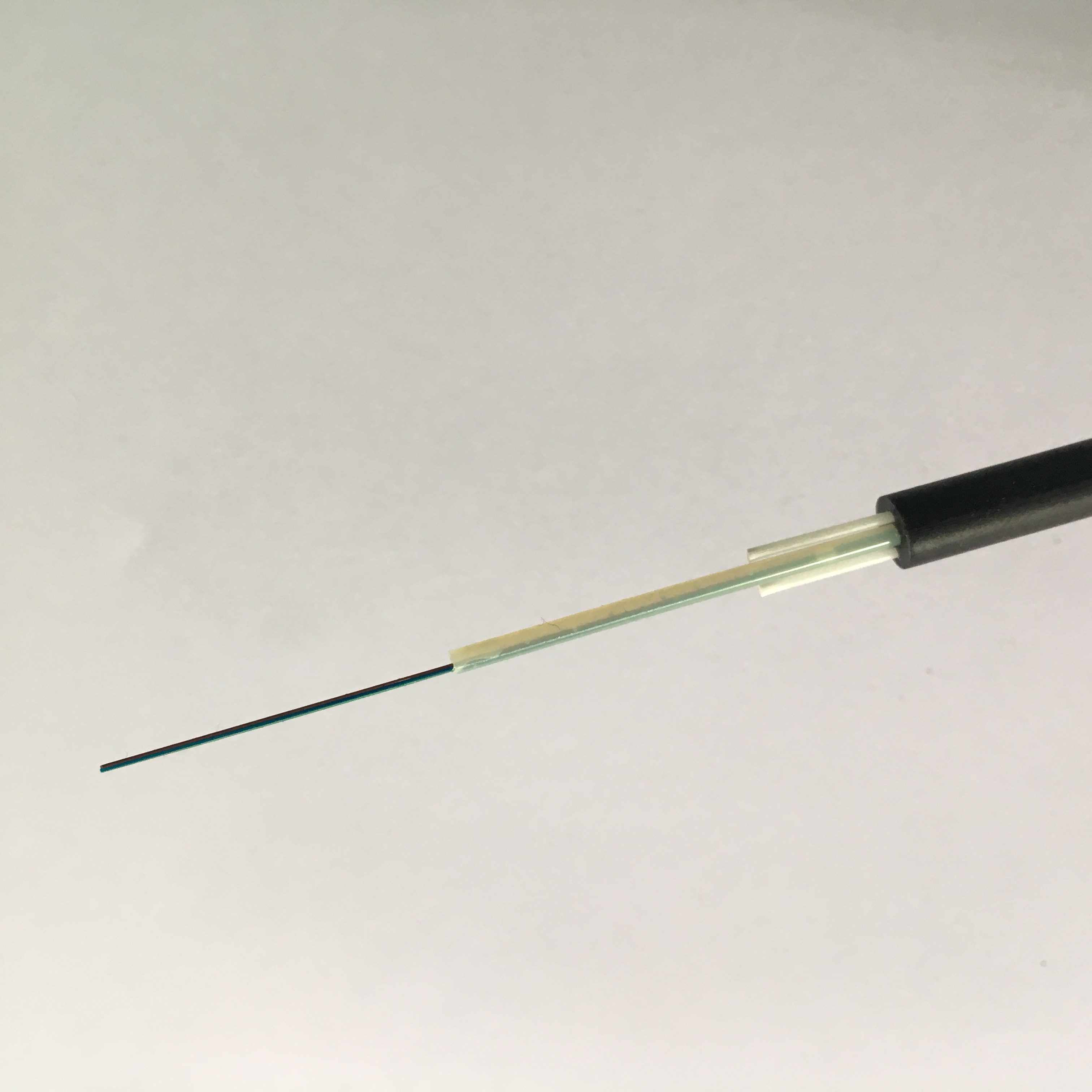

6 Core GYFXTY Single Mode G652D Outdoor Fiber Optic Cable Images
