Bule LSZH Jacket 288 Core Duct Fiber Optic Cable

Name: Bule LSZH Jacket 288 Core Duct Fiber Optic Cable
Brand: JQ/OEM
Price: 1 USD

China Bule LSZH Jacket 288 Core Duct Fiber Optic Cable wholesale

Brand Name : JQ/OEM

Model Number : MGTSV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 3-5dyas

Packaging Details : 1/2/3/4/5 km in one wooden drum

Jacket material : Flame-Retardant LSZH

Fiber count : 4-288core

Structure : Stranded

Product name : Outdoor Optic Fiber Cable

Fiber type : YOFC or as request

Application : Aerial,Duct

Color : Blue

Module : MGTSV-24B1

Contact Now

Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV

Item Name	MGTSV Fiber Optic Cable
Place of Origin	Guangdong,China
Model Number	MGTSV
Brand Name	JQ
Fiber Type	Single mode ITU-T G652D
Fiber No.	2-288 cores
Strength Member	Central Steel Wire/ FRP
Material of Jacket	Flame-retardant Sheath
Cable Structure	Stranded Loose Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

Features
1.Good flame retardant performance.
2.High strength loose tube that is hydrolysis resistant.
3.Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
4.Loose tube wrapped by non-weaven tape has the water blocking ability.
5.Special tube filling compound ensure a critical protection of fiber.
6.Blue PVC or LSZH jacket: Flame retardant, the blue color is easy to identify.
7.Crush resistance and flexibility.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical data

Cable Type	Fiber Count	Tubes +Fills	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long /Short Term N/100m	Bending Radius Static /Dynamic mm
MGTSV-2~6	2~60	5	12.2	156	1000/2000	500/1500	15D/30D
MGTSV-62~72	62~72	6	13.8	210	1750/3500	500/1500	15D/30D
MGTSV-74~96	74~96	8	15.1	242	1750/3500	500/1500	15D/30D
MGTSV-98~120	98~120	10	17.2	280	1750/3500	500/1500	15D/30D
MGTSV-122~144	122~144	12	19	320	1750/3500	500/1500	15D/30D
MGTSV-146~216	146~216	18	19	320	1750/3500	500/1500	15D/30D

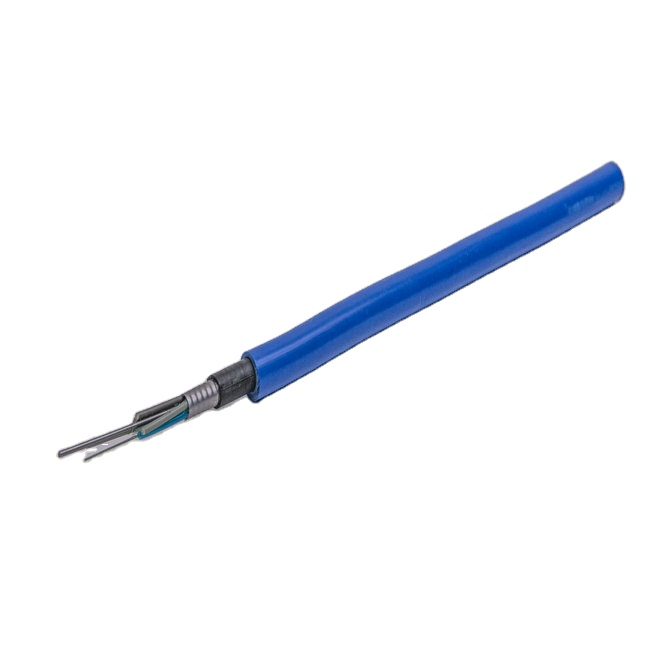

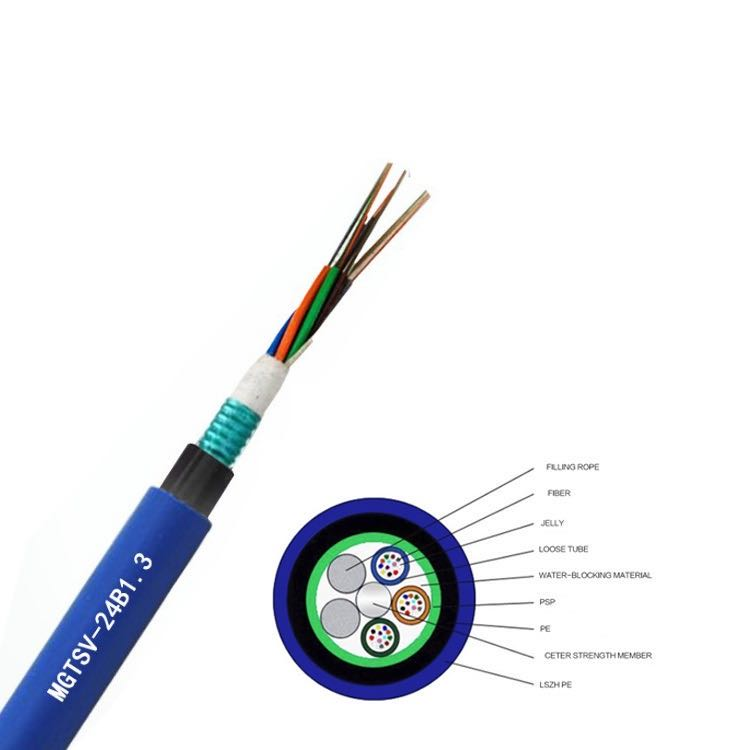

Product Image

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable

Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

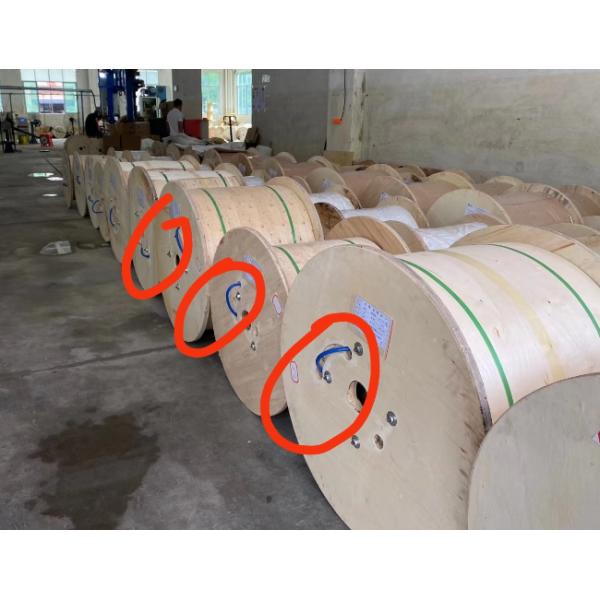

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable

Product Tags:

LSZH Duct Fiber Optic Cable

ROHS Duct Fiber Optic Cable

Aerial Outdoor Fiber Optic Cable

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable Images
